WNK80ma
WNK

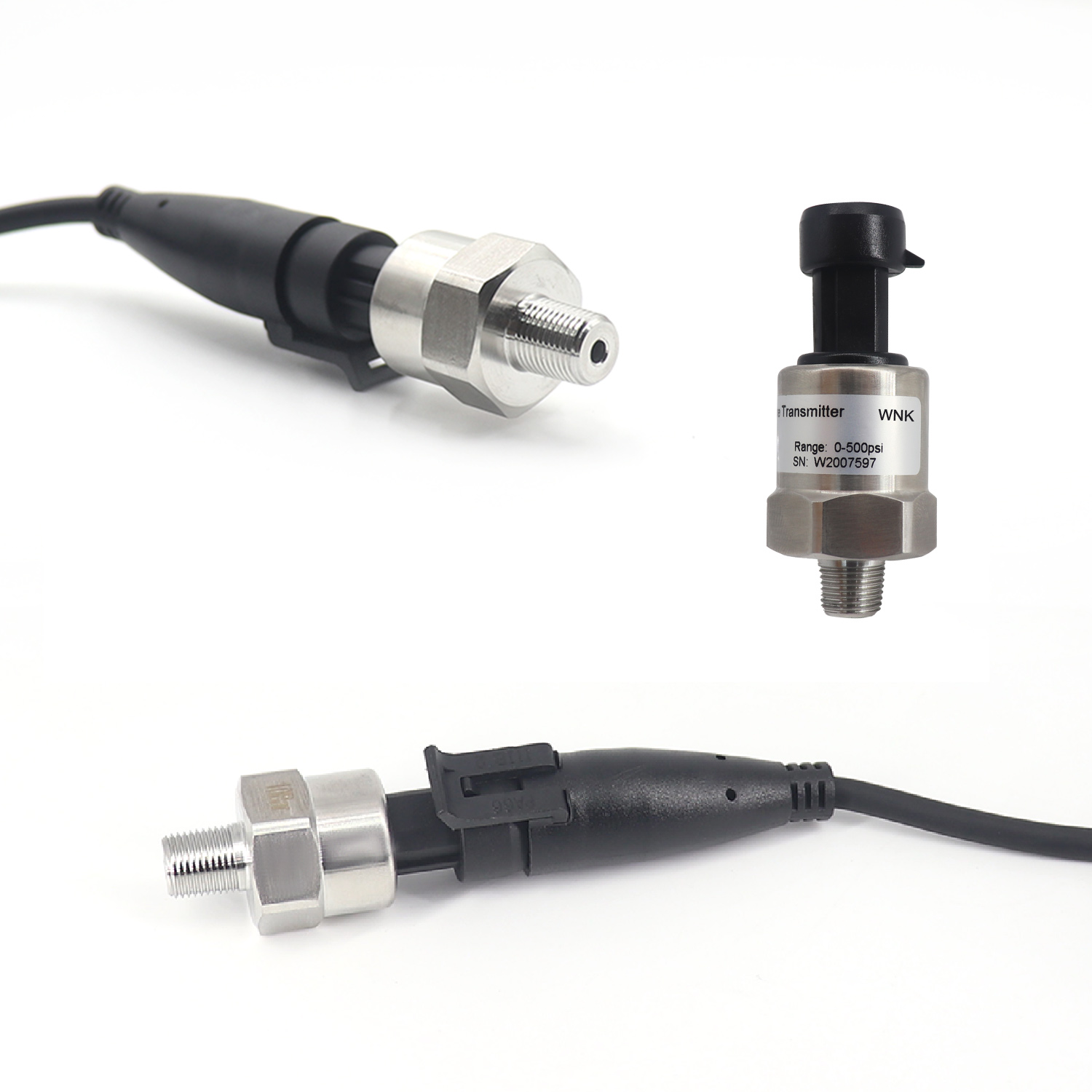

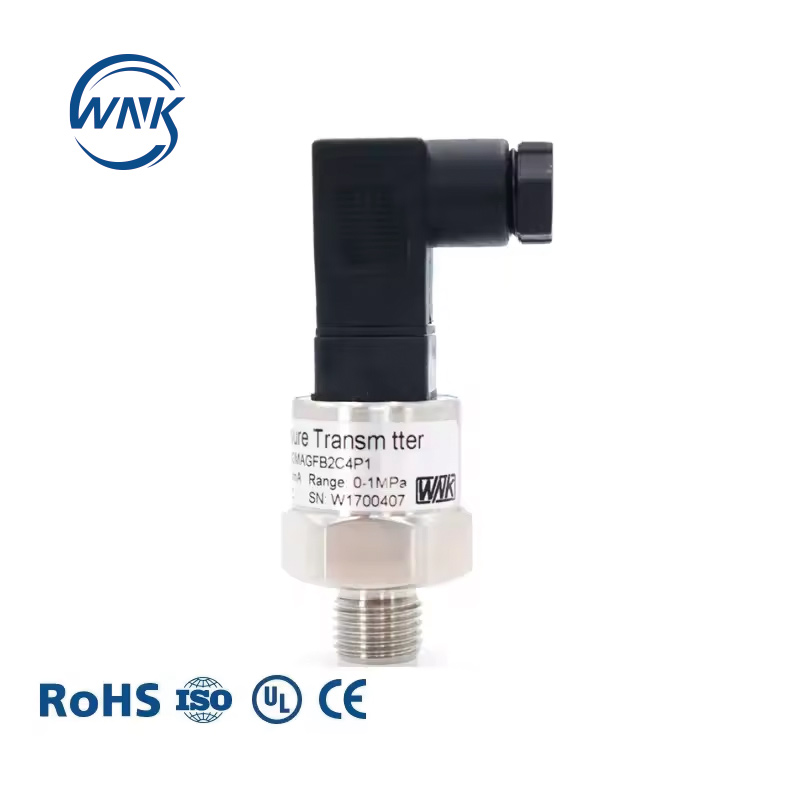

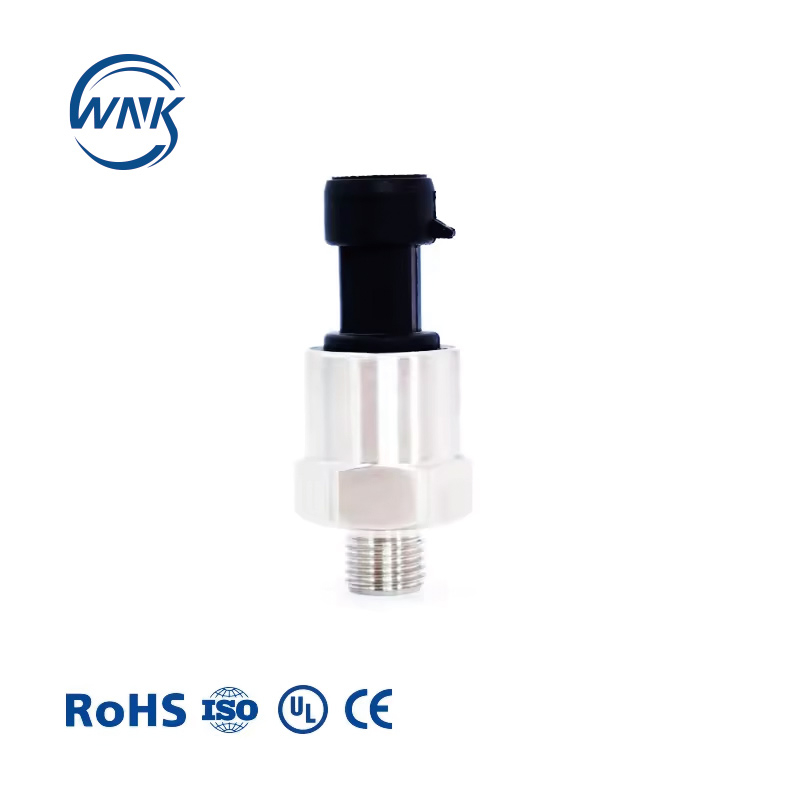

The WNK81MA is a high-performance silicon oil filled pressure transducer designed to meet the demanding requirements of various industrial applications. It integrates imported ASCI signal conditioning chips and diffused silicon oil filled sensor cores, ensuring reliable and accurate pressure measurement. This sensor stands out for its exceptional durability and stability, making it a preferred choice in multiple fields.
With a wide range of certifications including UL, RoHs, Reach, CE, and UKCA, the WNK81MA not only complies with international standards but also facilitates market expansion for businesses. Its design focuses on providing long-term service with high precision, catering to the needs of pressure measurement and control in diverse industrial settings.
· Anti-corrosion and anti-wear: The use of high-quality materials, such as 304 stainless steel for the housing and 316 stainless steel for the inner core, ensures the sensor can resist the effects of various corrosive media, extending its service life.
· Shock and vibration resistance: This feature allows the sensor to maintain stable performance even in harsh environments with frequent mechanical disturbances, ensuring accurate measurements at all times.
· Long-term stability and high accuracy: Boasting an accuracy of 0.5%F.S./1%FS (Typical) for linearity, hysteresis, and repeatability, the sensor provides consistent and reliable data over an extended period.
· Pressure Range: Available in 0-60bar/-1-700Bar, covering a wide spectrum of pressure measurement needs.
· Pressure Type: Supports Gauge Pressure, Absolute pressure, and Sealing pressure, offering versatility in different application scenarios.
· Output: Multiple output options are provided, including 4-20mA/0.5-4.5V/1-5V/0-10V/I2C, enabling seamless integration with various control systems.
· Power Supply: Compatible with 24VDC/12VDC/5VDC/3.3V, ensuring flexibility in power source selection.
· Temperature performance: The compensation temperature ranges from -20~85ºC, and the ambient and working temperatures can reach -40~125ºC. The temperature drift for zero and full range is ±0.15% F.S. (-20~85ºC), guaranteeing accurate measurements under varying temperature conditions.
· Connections: Electrical connections include Parkard, M12, DIN43650, and Cable outlet, while mechanical connections offer options like G1/4, 1/4NPT, 1/8NPT, M12*1.5, and customization, making installation convenient and adaptable to different setups.
· Protection: With an IP65 protection rating, the sensor is well-protected against dust and water, enhancing its reliability in challenging environments.
The WNK81MA finds extensive application in numerous industries and systems:
· Automobile, Compressor and Refrigeration Industry: It plays a crucial role in monitoring and controlling pressure in various components, ensuring the efficient and safe operation of these systems.
· Engineering machinery: Helps in maintaining optimal pressure levels in hydraulic and pneumatic systems, contributing to the smooth functioning of heavy machinery.
· Pressure control and monitor: Provides real-time pressure data for effective control and monitoring of industrial processes.
· Water treatment system: Ensures accurate pressure measurement in water treatment processes, facilitating efficient water purification and distribution.
· Hydraulic and Pneumatics: Essential for regulating pressure in hydraulic and pneumatic circuits, improving system performance.
· HAVC and BAS Control: Aids in maintaining proper pressure in heating, ventilation, air conditioning, and building automation systems.
· Pump, fitness equipment, household appliances: Used in these devices to monitor pressure and ensure their safe and efficient operation.
· Factory Automation and Fluid Control and Instrumentation Systems: Integrates seamlessly into automated systems to provide precise pressure feedback, enhancing overall system efficiency.
Q: Are you a manufacturer or a trading company?
A: We are a 21-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc., and electronic switches. We provide high-quality products at a highly competitive factory price.
Q: What is your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have a strict quality control system. Each product undergoes fatigue testing, calibration, and temperature compensation before shipment, ensuring high quality is guaranteed.
Q: Is there a MOQ for your product?
A: We have no MOQ limits, and 1pc for testing purposes is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products. OEM, ODM, and customization are welcomed.
Q: What is the warranty of your products? And what about after-sales service?
A: Our warranty period is 12 months after shipment. Our after-sales department will respond to your questions within 24 hours, and remote instruction via PC network is always available.
Q: What is the lead time of your product?
A: As a factory, our lead time is always within 7 working days for products without customization. However, the lead time for flange products is a little longer.
