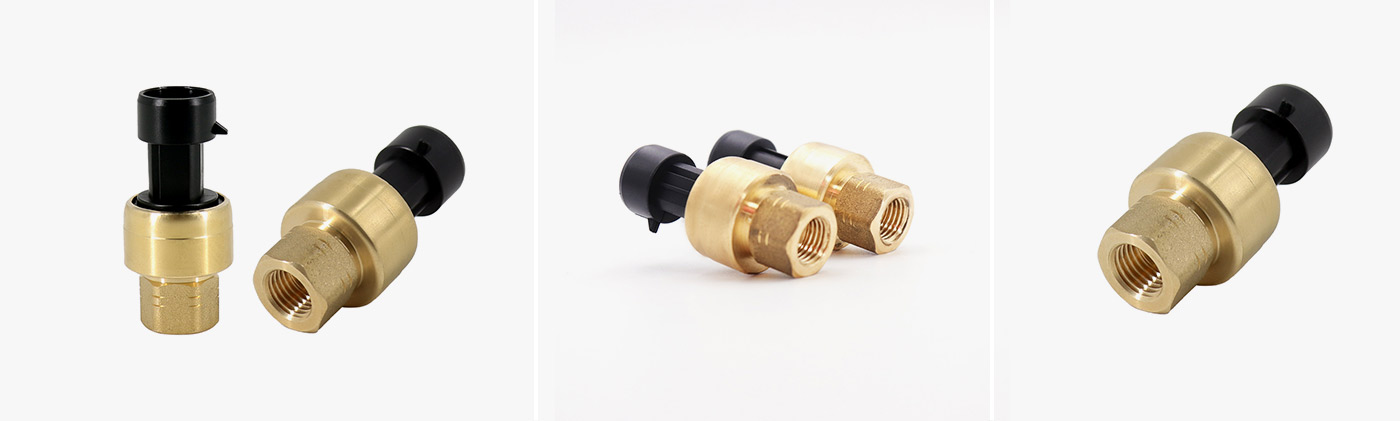

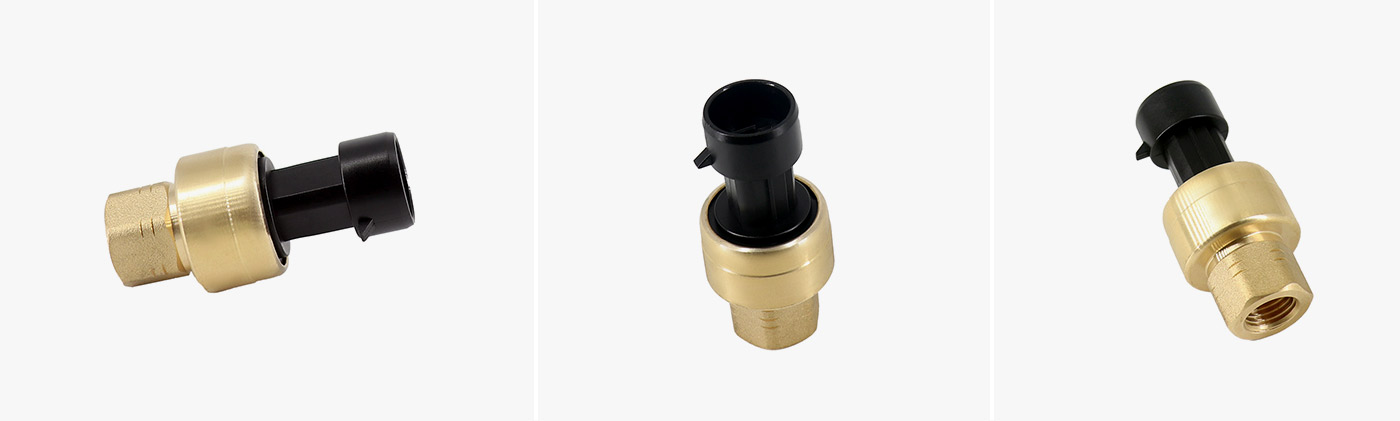

WNK85MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is over 3-5 times of the range, completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. As high output and wide range of its core ceramic capacitive sensor, WNK85MA is especially suitable for harsh industrial environment pressure measurement.
| Quantity: | |
|---|---|
WNK85
WNK
Applicable media | Liquid, gas, seam |
Pressure range | 2MPa-6MPa |
Pressure measurement | Gauge pressure |
Output | 0.5-4.5V,4~20mA,0~10V |
Power Supply | 5VDC,24VDC |
Accuracy(lineraity, hysteresis, repeatability) | 1%FS |
Working temperature | -20~70°C |
Storage temperature | -40~85°C |
Temp drift(zero) | ±0.15%FS(-20~70°C) |
Temp drift(full range) | ±0.15%FS(-20~85C) |
Electrical connection | Pakard/ Cable Outlet |
Mechanical connection | 7/16-UNF (female) |
Housing material | Brass |

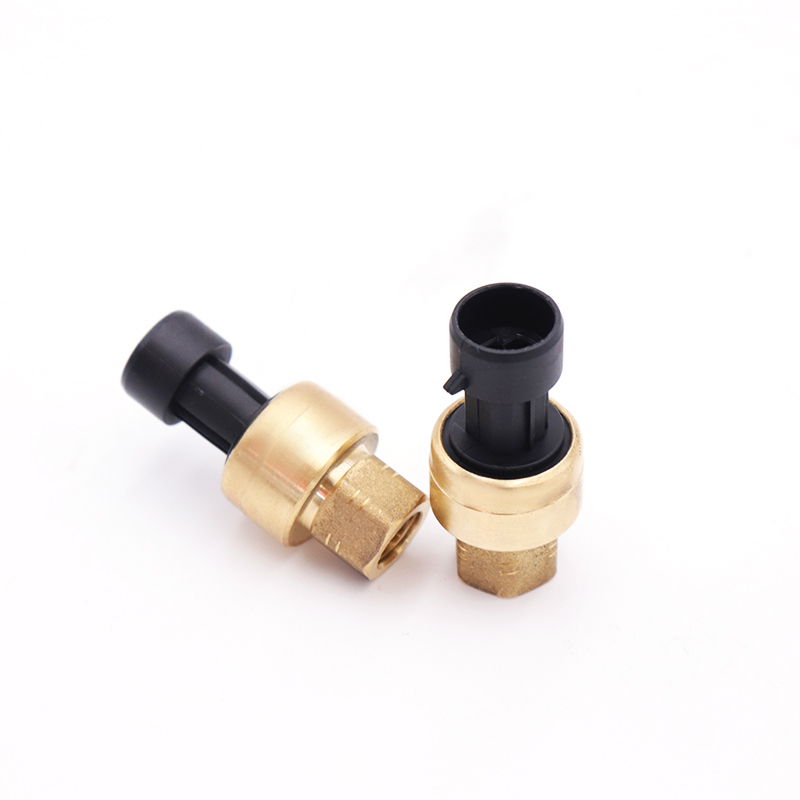

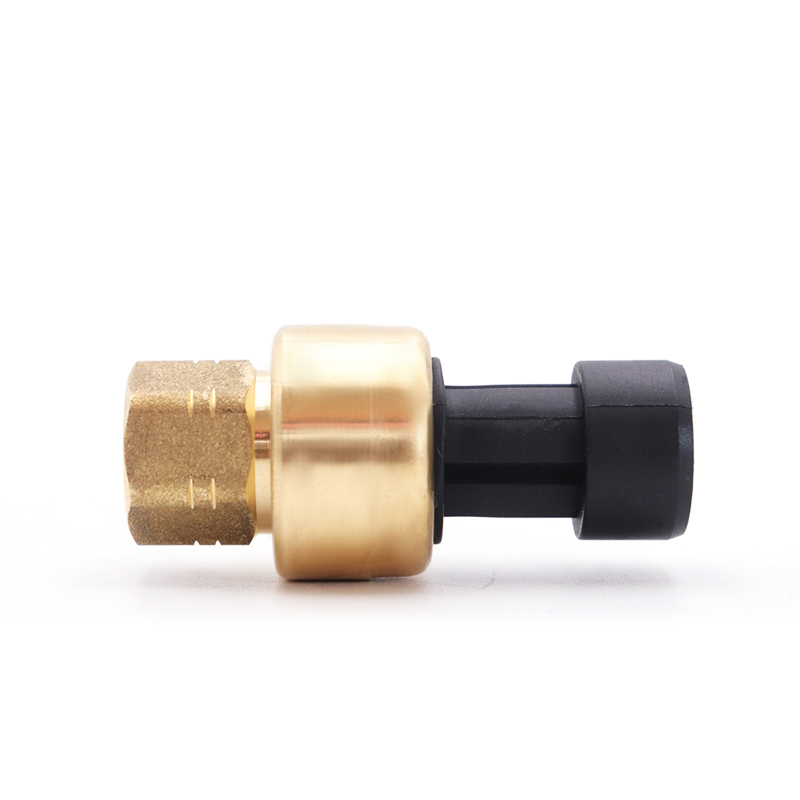

The WNK85 is a high-performance compact pressure transducer engineered for precise pressure measurement in demanding environments, with a primary focus on HVAC systems. It integrates an ASIC signal conditioning chip and a dry ceramic capacitive pressure sensor, forming a core structure that delivers reliability and accuracy across diverse applications.
What sets the WNK85 apart is its ability to excel in harsh industrial settings, thanks to a combination of robust design and advanced technology. Beyond standard pressure measurement capabilities, it addresses critical pain points such as poor overload resistance in small-range sensors, making it a versatile solution for both general and specialized pressure monitoring needs. Whether used with liquids, gases, or steam, this transducer ensures consistent performance, making it a trusted choice for professionals seeking precision in pressure data.
The WNK85 is built to withstand tough conditions, boasting anti-corrosion, anti-wear, shock resistance, and vibration resistance properties. These features ensure longevity even in environments where exposure to harsh media or mechanical stress is common, reducing maintenance needs and extending service life.
A standout feature is its anti-overload capacity of 3-5 times the measuring range, a significant improvement over many conventional sensors that struggle with overload in small ranges. This makes the WNK85 highly reliable in scenarios where pressure spikes are possible, preventing damage and ensuring continuous operation.
In addition to covering standard pressure ranges, the WNK85 offers a unique positive and negative gauge pressure function, expanding its applicability to systems where pressure fluctuations above and below atmospheric pressure need monitoring. Its pressure range is 2MPa-6MPa, with gauge pressure as the primary measurement type, catering to mid-range pressure requirements in HVAC and industrial setups.
· Accuracy: Combines linearity, hysteresis, and repeatability for an overall accuracy of 1% FS, ensuring precise data for critical systems.
· Output Signals: Supports multiple outputs, including 0.5-4.5V, 4~20mA, and 0~10V, allowing seamless integration with various control and monitoring systems.
· Power Supply: Compatible with 5VDC and 24VDC, offering flexibility in installation across different power setups.
· Temperature Tolerance: Operates efficiently in a working temperature range of -20~70°C and can be stored in environments as extreme as -40~85°C.
· Temperature Drift: Maintains stability with ±0.15% FS (-20~70°C) for zero drift and ±0.15% FS (-20~85°C) for full-range drift, ensuring minimal error even with temperature variations.

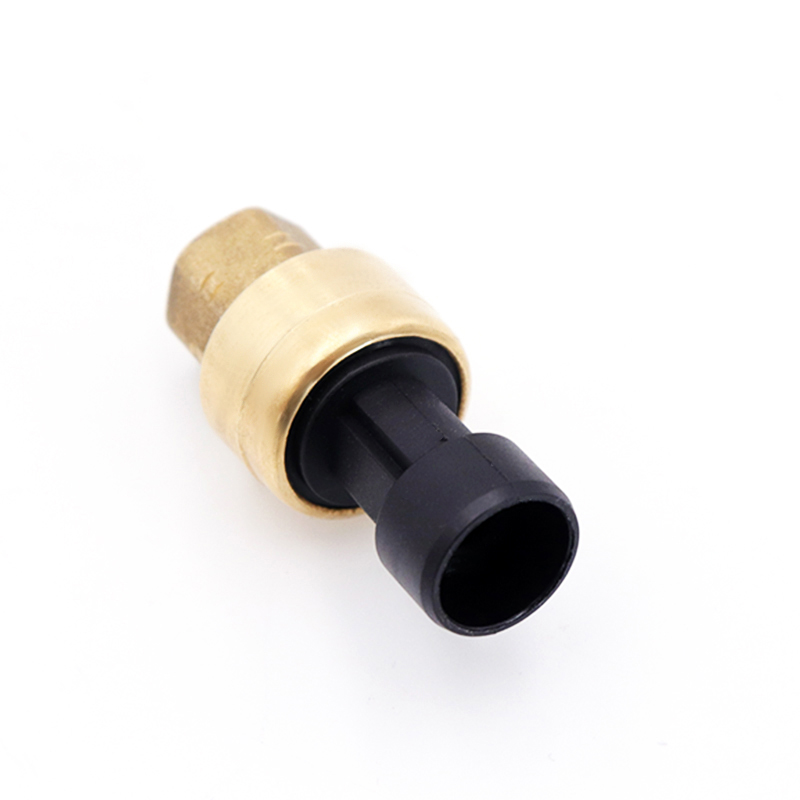

· Electrical Connection: Options include Pakard or cable outlet, adapting to different installation requirements.

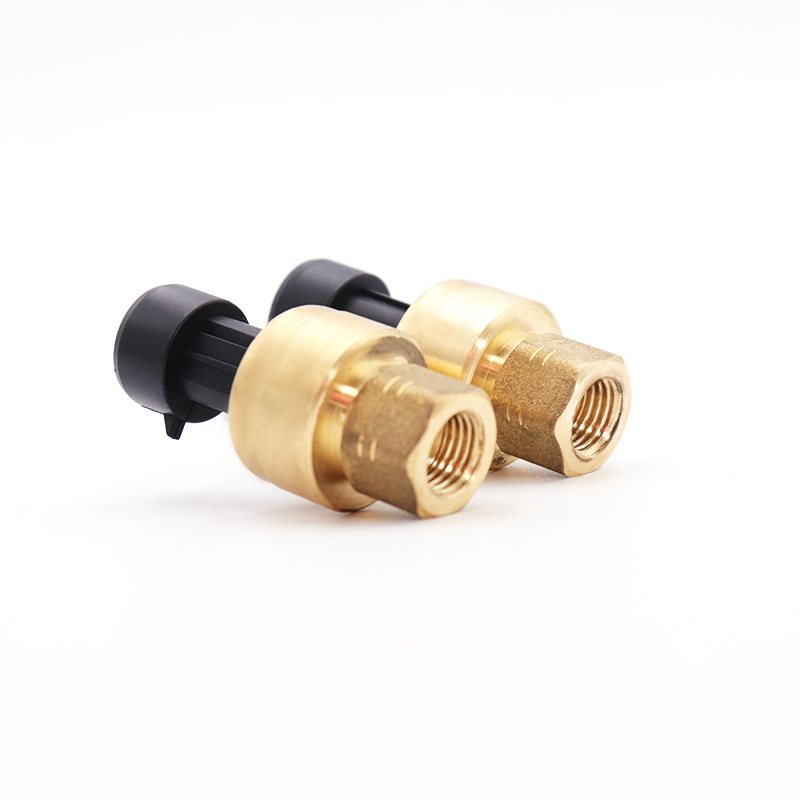

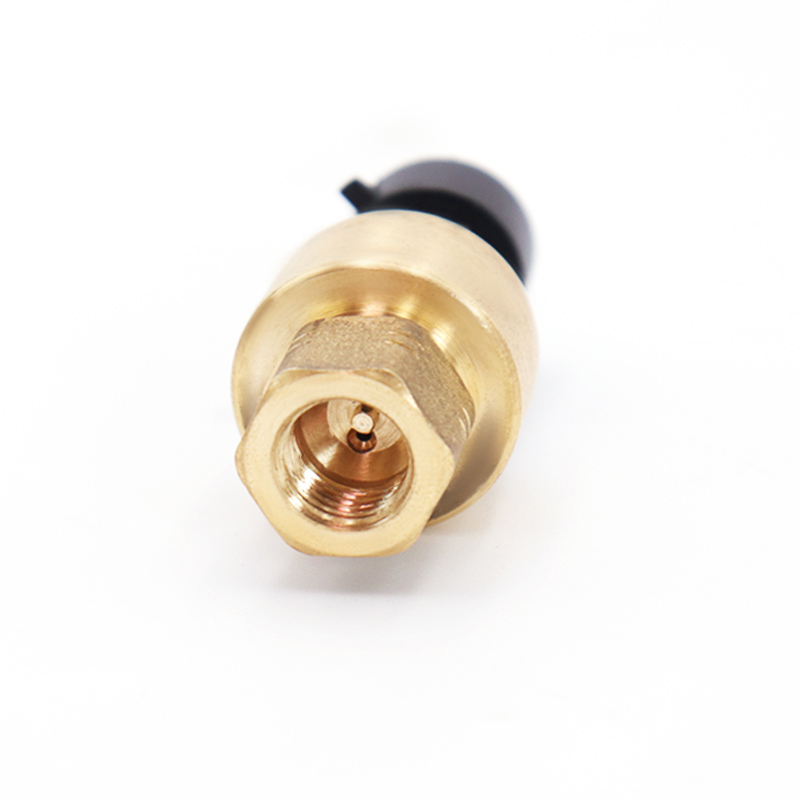

· Mechanical Connection: Features a 7/16-UNF (female) thread, ensuring secure fitting in compatible systems.
· Housing Material: Constructed with brass, balancing durability and cost-effectiveness for industrial use.
The WNK85 is designed to thrive in diverse scenarios, with its primary applications including:
· HVAC Systems: Critical for monitoring refrigerant pressure in heating, ventilation, and air conditioning setups, ensuring efficient operation and preventing system failures.
· Industrial Pressure Measurement: Ideal for harsh industrial environments where liquids, gases, or steam are present, such as in manufacturing plants, chemical processing, and power generation facilities.
· Refrigeration Equipment: Supports precise pressure control in commercial and industrial refrigeration units, maintaining optimal cooling performance.
· Mechanical Systems: Used in hydraulic or pneumatic systems where mid-range pressure (2MPa-6MPa) monitoring is essential for safety and efficiency.
Q: Are you a manufacturer or a trading company?
A: We are a professional manufacturer specializing in pressure, level, and temperature measurement solutions since 2004. This ensures direct control over product quality and customization capabilities.
Q: What quality control measures do you implement?
A: We are an ISO 9001-2015 certified manufacturer with a strict quality control system. Beyond calibration, every product undergoes temperature compensation and aging tests before shipment, guaranteeing consistent performance.
Q: What is the warranty period for the WNK85?
A: The product comes with a 12-month warranty from the shipment date, covering non-man-made damages.
Q: Can we customize the product with our logo or specific requirements?
A: Yes, we offer OEM/ODM services, including logo printing and customizations based on your specific needs.
