In modern industrial operations, the humble pressure sensor is a linchpin of efficiency, safety, and process control. These devices are the silent guardians of systems ranging from hydraulic presses to chemical reactors, providing the critical data that keeps operations running smoothly. However, when a sensor begins to fail, it can trigger costly "nuisance trips," cause production downtime, or even compromise personnel safety. Differentiating between a genuine hardware failure and a simple wiring issue is a crucial skill for any maintenance or reliability team. This guide provides a systematic framework for diagnosing common Pressure Sensor problems, helping you troubleshoot effectively and make informed decisions about whether to repair, recalibrate, or replace the faulty component.
Identify Symptoms Early: Distinguish between erratic signals, zero-point drift, and total signal loss.
Systematic Diagnostics: Always verify the power supply and wiring before condemning the sensor hardware.
Root Cause Analysis: Most failures stem from improper installation, overpressure events, or environmental mismatch.
Decision Framework: Evaluate Total Cost of Ownership (TCO) when deciding between recalibration and upgrading to more robust technology.
Effective pressure sensor troubleshooting begins with correctly identifying the symptoms. A sensor rarely fails suddenly without prior indicators. Recognizing these early warning signs can prevent major process disruptions. Each symptom points toward a different set of potential root causes, guiding your diagnostic approach.
One of the most common issues is a gradual shift in the sensor's baseline reading, known as zero-point drift. When the system is at a known zero pressure (e.g., atmospheric), the sensor might report a small positive or negative value. This can be caused by thermal effects, where temperature fluctuations alter the physical properties of the sensing element. It can also result from sensor fatigue or aging, where the diaphragm or strain gauges experience mechanical stress over millions of pressure cycles, causing a permanent offset. Distinguishing between these is key; temporary thermal drift may be acceptable, while permanent offset often signals the end of the sensor's reliable life.
If the sensor's output signal is unstable, jumping erratically even when system pressure is stable, you're likely dealing with electrical noise. A primary suspect is electromagnetic interference (EMI) or radio frequency interference (RFI). This often occurs when sensor signal cables are run too close to high-power lines, variable frequency drives (VFDs), or large motors. Another common cause is a poor electrical connection. Loose terminal screws, corroded contacts, or a compromised cable shield can all introduce noise into the sensitive milliamp or voltage signal, making the readings unreliable.
A healthy pressure sensor exhibits a linear response; its output signal should change proportionally to the physical pressure applied. When you notice that the sensor is accurate at zero and full scale but provides incorrect readings in the middle of its range, it has lost its linearity. This is a serious internal fault, often indicating damage to the sensing diaphragm or the internal signal conditioning electronics (ASIC). This kind of failure is typically not correctable through simple recalibration and often requires sensor replacement.
A sensor that provides no output signal at all (e.g., 0mA on a 4-20mA loop) is considered "dead." While it's easy to assume the sensor itself has failed, the root cause is frequently external. The most common culprit is a power supply failure. Before condemning the sensor, always check if it's receiving the correct voltage. A break in the signal wire or a blown fuse in the control panel can also lead to a dead output. Only after confirming the integrity of the entire electrical loop should you conclude that the sensor's internal electronics have failed.
In dynamic applications, a sensor must react quickly to pressure changes. If you observe a noticeable lag between a system event and the sensor's reported value, it points to a mechanical or physical issue. The most frequent cause is a clogged pressure port. Process media, such as slurries, gels, or fluids with particulates, can solidify or build up inside the small orifice leading to the sensing diaphragm. This blockage physically restricts the pressure from reaching the sensor element, damping its response. In some cases, high-viscosity fluids can also slow the diaphragm's movement, creating a similar lag.
Instead of guessing, a structured approach saves time and prevents unnecessary replacements. This five-step framework isolates the problem logically, moving from the easiest and most common issues to the more complex. Following these steps helps diagnose the majority of faulty pressure sensor symptoms with confidence.
Electrical Verification: The first step is always to check the electrical circuit. More than half of all "failed" sensors are connected to a faulty power supply or wiring. Use a digital multimeter (DMM) to verify the loop. For a standard 4-20mA sensor, you should measure a loop supply voltage between 12 and 36V DC. Next, place your DMM in series with the sensor to measure the current. If the voltage is present but the current is 0mA or a fixed value like 3.5mA (indicating a fault state on some models), the problem might be the sensor. For voltage output sensors, check the power supply and then measure the signal output directly.
Isolation Testing: If the electrical loop seems fine, the next step is to isolate the sensor from the process. This eliminates the possibility that the readings are accurate and the process itself is behaving unexpectedly. Carefully and safely remove the sensor from its mounting. With no pressure applied (open to atmosphere), the sensor should output its "zero" value. For a 4-20mA sensor, this is typically 4.0mA. If it reads significantly higher or lower, you have confirmed a zero-point drift or offset issue with the hardware.
Loop Integrity Check: Before focusing solely on the sensor, inspect the entire signal path. Examine terminal blocks and junction boxes for signs of corrosion, which can create high-resistance connections. Check for moisture ingress, especially in outdoor or washdown environments, as water can short-circuit terminals. Ensure that the cable shielding is properly grounded at one end (typically the control panel end) to protect against EMI and RFI. A compromised shield is a common source of noisy signals.
Mechanical Inspection: With the sensor removed, perform a visual inspection. Look for any physical damage to the housing or electrical connector. Critically, examine the sensing diaphragm. Is it dented, punctured, or warped? Any deformation suggests a past overpressure event. Also, check the pressure port for blockages. Crystallization of media, sludge, or debris can prevent pressure from reaching the diaphragm. A gentle cleaning with an appropriate solvent and a soft brush may resolve slow response or offset issues.

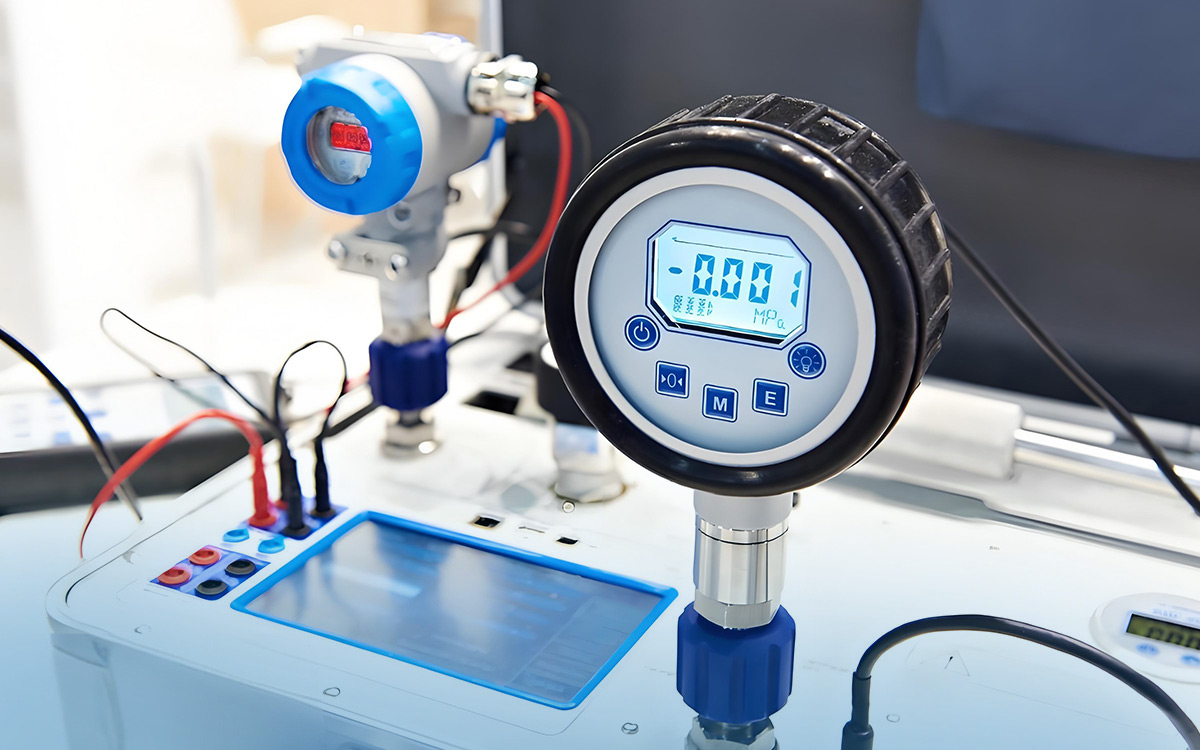

Comparative Validation: The final step is to verify the sensor's accuracy. Connect the sensor to a known pressure source, such as a hand pump with a calibrated master pressure gauge. Apply pressure at several points across the sensor's range—for example, at 0%, 25%, 50%, 75%, and 100%. Compare the sensor's output reading to the master gauge. If the readings are consistently off by a fixed amount (offset error) or by a percentage of the reading (span error), the sensor may need recalibration. If the error is erratic or non-linear, the sensor is likely failing.
Understanding why a Pressure Sensor fails is fundamental to preventing future occurrences. Failures are rarely random; they are typically caused by a mismatch between the sensor's specifications and the application's demands. By analyzing the root cause, you can select a more appropriate replacement and improve overall system reliability.
Every sensor has a specified measuring range and a proof pressure rating. The proof pressure is the maximum pressure the sensor can withstand without permanent damage. Events like water hammer (caused by a valve closing too quickly) or hydraulic pressure spikes can easily exceed this rating, even for a moment. This can deform the sensing diaphragm, causing a permanent zero shift or complete failure. The damage is not always visible but renders the sensor inaccurate.
The operating environment plays a huge role in sensor longevity.
Ingress: If a sensor with an insufficient Ingress Protection (IP) rating is used in a wet or dusty area, moisture and contaminants can penetrate the housing and corrode the electronics. An IP67 or IP68 rating is often necessary for washdown or outdoor applications.
Chemical Incompatibility: The process fluid must be compatible with the sensor's wetted parts, primarily the diaphragm. A standard 316L stainless steel diaphragm can be corroded by aggressive chemicals. In such cases, materials like Hastelloy C276 or Tantalum are required to prevent chemical attack, which can lead to diaphragm rupture and sensor failure.
Pressure sensors are designed to operate within a specific compensated temperature range. Operating outside this range can cause significant errors in accuracy and, in extreme cases, permanent damage. High temperatures can degrade the internal electronics or the oil fill inside some sensor types. Freezing temperatures can cause process media to solidify and expand, potentially damaging the diaphragm. If the process temperature is extreme, impulse lines or diaphragm seals with cooling elements should be used.
Improper installation is a leading cause of premature sensor failure.
Common Installation Mistakes:
| Error Type | Description of Damage | Prevention Best Practice |
|---|---|---|
| Over-Torquing | Applying excessive torque to the threads during installation can deform the sensor housing and stress the sensing element, causing a calibration shift. | Always use a torque wrench and adhere to the manufacturer's specified torque value. Do not tighten by turning the sensor housing. |
| Improper Mounting | In some applications, mounting a sensor upside down can allow particulates to settle on the diaphragm, causing drift. In steam applications, incorrect mounting can trap condensate. | Follow manufacturer guidelines. For steam, use a siphon (pigtail) and mount the sensor correctly to create a water leg that protects it from high temperatures. |
| Vibration | Constant high-frequency vibration from pumps or motors can fatigue the sensor's internal components and connections over time, leading to intermittent failures. | Mount the sensor on a rigid pipe or bracket away from the vibration source. If necessary, use flexible tubing to isolate it. |
The sensitive microelectronics inside a modern pressure sensor are vulnerable to electrical damage. A nearby lightning strike can induce a massive voltage surge in the signal cabling, destroying the sensor's internal circuitry. Power surges from the grid or electrical noise from large VFDs can also cause damage over time. Using properly shielded cabling and installing surge suppressors on the power and signal lines can provide crucial protection in electrically noisy environments.
When a sensor is found to be inaccurate, the immediate question is what to do next. The decision is not always straightforward and should be based on a combination of technical feasibility, cost, and risk. A thoughtful evaluation ensures you make the most reliable and cost-effective choice for your operation.
Recalibration is a viable option only under specific conditions. If troubleshooting reveals a consistent and linear error, such as a simple zero drift or span shift, a recalibration can bring the sensor back into specification. However, this is only true if the sensor is still repeatable—meaning it provides the same output for the same applied pressure every time. If the sensor's output varies for the same pressure point (poor repeatability) or if its response is non-linear, recalibration is a waste of time. The internal sensing element is compromised, and the fault will reappear.
For most modern industrial pressure sensors, "repair" is not a practical option. The majority of these devices are constructed as laser-welded, hermetically sealed units. The internal components—the sensing element, ASIC, and wiring—are not accessible without destroying the sensor's integrity. Attempting to open a sealed unit breaks its factory calibration and environmental seal. While some third-party services may offer refurbishment, this carries significant risks. The repaired unit may lack the reliability, accuracy, and agency certifications (like those for hazardous locations) of a new sensor, potentially creating a safety hazard.
The decision to replace a sensor should not be based on its purchase price alone. A Total Cost of Ownership (TCO) analysis provides a more complete picture. Consider these factors:
Cost of Downtime: How much production revenue is lost for every hour the process is down while a technician attempts to recalibrate or troubleshoot?
Labor Costs: Factor in the technician's time for removal, transport to a cal lab, calibration, and reinstallation.
Risk of Future Failure: An aging, recalibrated sensor has a higher probability of failing again soon compared to a new one. What is the cost of a second, unplanned outage?
Often, the cost of a new, reliable sensor is a fraction of the potential downtime and labor costs associated with trying to salvage an old, failing one.
A sensor failure can be a strategic opportunity. Instead of a like-for-like replacement, consider if an upgrade could deliver greater long-term value. If you are frequently dealing with ambiguous failures, this is an ideal time to switch from a simple analog (4-20mA) sensor to a "smart" sensor with a digital protocol like HART or IO-Link. These devices provide advanced diagnostics, allowing you to remotely identify issues like electronic faults, temperature limit breaches, or drift before they cause a process shutdown. This proactive insight can dramatically improve the reliability and maintainability of your system.
Achieving long-term reliability is not about finding the "perfect" sensor; it's about implementing a robust strategy that covers selection, protection, and maintenance. A proactive approach minimizes unplanned downtime and extends the life of your critical instrumentation.
The foundation of reliability is choosing the right sensor for the job. Do not simply replace a failed sensor with the same model without first confirming its suitability. Consider the specific stresses of the application:
Piezoresistive: Excellent for general-purpose applications, offering good accuracy and a wide pressure range. They are a workhorse in many industries.
Capacitive: Often chosen for low-pressure applications and for their high stability and resistance to overpressure.
Thin-Film: These sensors excel in high-vibration and high-shock environments due to their robust, sputtered-on sensing element. They are ideal for mobile hydraulics and heavy machinery.
Matching the technology to the application stress is the first and most important step in preventing premature failures.
Sometimes, even the right sensor needs extra help to survive a harsh process. Protective accessories are a cost-effective way to isolate the sensor from damaging conditions:
Common Sensor Protection Devices
| Accessory | Purpose | Typical Application |
|---|---|---|
| Pressure Snubber | Dampens rapid pressure pulsations and spikes. | Hydraulic systems with fast-acting valves or positive displacement pumps. |
| Siphon (Pigtail) | Creates a condensate barrier to protect the sensor from high-temperature steam. | Steam lines for boilers, autoclaves, or sterilization equipment. |
| Diaphragm Seal | Isolates the sensor from corrosive, viscous, or high-temperature media. | Chemical processing, pulp and paper, or food and beverage applications. |
Reliability requires a structured PM program. Don't wait for a sensor to fail. Instead, establish regular calibration intervals. The frequency of these checks should be based on two factors: the sensor's historical performance and the criticality of the measurement. For a non-critical application where sensors have shown little drift, an annual check might be sufficient. For a safety-critical measurement on a sensor known to drift, a quarterly or semi-annual calibration might be necessary. Use a calibration management system to track this data over time, allowing you to optimize your PM schedule based on actual evidence.
Thorough documentation is not just for auditors; it's a vital tool for troubleshooting and continuous improvement. For every calibration, record both the "as-found" and "as-left" data. The "as-found" data tells you how much the sensor drifted since its last calibration, providing valuable insight into its health. The "as-left" data confirms it was returned to service within its required tolerance. For processes governed by safety standards like SIL (Safety Integrity Level), this documentation is mandatory and forms a critical part of the safety lifecycle management.
Effectively addressing pressure sensor issues is about adopting a systematic mindset. By moving from reactive problem-solving to a structured diagnostic approach, you can quickly pinpoint the true source of failure, whether it's in the wiring, the installation, or the sensor itself. This method not only reduces immediate downtime but also builds a foundation for long-term reliability. The ultimate goal is to shift from reactive firefighting to proactive health monitoring.
Analyzing the root causes of each failure provides invaluable data for making better decisions in the future—from selecting more robust sensor technology to implementing protective accessories where needed. Ultimately, building a truly resilient process involves more than just buying hardware. It requires partnering with manufacturers who offer deep technical support, transparent performance data, and expertise to help you select, install, and maintain your critical instrumentation for years to come.
A: First, isolate the sensor from the process. If it reads a stable "zero" value when open to the atmosphere, it's likely not broken electronically. A slow response to pressure changes or an inability to return to zero when reinstalled points to a clog. Visually inspect the port for debris. A broken sensor will often show no output, an erratic signal, or a significant offset even with no pressure applied.
A: Accuracy is how close a measurement is to the true physical value. Repeatability is the sensor's ability to give the same reading for the same pressure over and over again. A sensor can be repeatable but inaccurate (e.g., always reading 2 psi high). This can often be fixed with recalibration. If a sensor is not repeatable, it's unreliable and should be replaced, as its readings cannot be trusted.
A: Yes, it can. A gauge pressure sensor is zeroed at atmospheric pressure. Applying a strong vacuum can pull the diaphragm in the opposite direction it was designed for, potentially causing a permanent zero shift or damaging the sensing element. If your process involves both positive pressure and vacuum, you must use a compound pressure sensor designed to measure both.
A: The frequency depends on the application's criticality and the sensor's stability. For non-critical monitoring, an annual check may be sufficient. For critical process control or safety systems, calibration may be required every three to six months. The best practice is to base the interval on historical data; if a sensor shows minimal drift over a year, you can extend the cycle. If it drifts significantly, shorten it.
A: The most common signs are an unstable or noisy output signal where the reading fluctuates rapidly without any corresponding change in process pressure. You might also see sudden spikes or dips in the reading that correlate with nearby equipment (like a large motor or VFD) turning on or off. Ensuring proper grounding of the cable shield and routing signal wires away from high-power cables is the primary solution.
