Selecting the right pressure sensor is one of the most critical decisions in system design. It directly impacts uptime, safety, and operational efficiency. A failure in a hydraulic system or a drift in a process control loop can lead to costly downtime or even catastrophic events. Yet, many engineers fall into the "specmanship" trap, choosing a device based on an attractive headline accuracy percentage on a datasheet. This single number often hides a multitude of potential errors that only surface in real-world operating conditions. A sensor that looks great on paper can become a major liability in the field.
This guide moves beyond the marketing specifications. Our goal is to equip you with the knowledge to evaluate a Pressure Sensor based on its true performance envelope and its total cost of ownership (TCO). We will dissect what accuracy really means, why material selection is your first line of defense against failure, and how to account for environmental and electrical challenges. By the end, you'll be able to confidently choose a sensor that delivers reliable data for the life of your application.
Accuracy vs. Total Error Band (TEB): Always prioritize TEB to account for temperature and drift.
Media Compatibility: Material selection (e.g., 316L vs. 17-4 PH) is the primary defense against sensor failure.
Protection is Mandatory: Features like pressure snubbers are essential for hydraulic systems to prevent "water hammer" damage.
Integration Costs: Digital, pre-compensated sensors reduce R&D time compared to basic analog components.
The term "accuracy" is one of the most misused specifications in the sensor industry. A datasheet might boast a 0.1% accuracy rating, but this figure rarely tells the whole story. Understanding the different ways accuracy is defined is the first step toward making an informed decision.
Specmanship refers to the practice of presenting data in the most favorable way, sometimes at the expense of clarity. A common tactic is using "Typical" versus "Maximum" ratings. A "typical" accuracy value may represent the performance of the best 50% of sensors under ideal lab conditions. However, the "maximum" error is what you must design your system to handle. Always design for the worst-case scenario, which is represented by the maximum error specification. Relying on typical values is a gamble that can lead to unexpected system failures when a sensor from the other end of the performance spectrum is installed.
Most low-cost sensors quote accuracy using the Best Fit Straight Line (BFSL) method. BFSL measures how much the sensor's output deviates from a perfect straight line. While it sounds precise, it conveniently ignores several critical error sources:
Zero Offset: The output signal when zero pressure is applied.
Span Error: The difference between the actual full-scale output and the ideal output.
Hysteresis: The difference in output when approaching a pressure point from an increasing versus decreasing direction.
Temperature Effects: How much the zero point and span shift as the temperature changes.
BFSL is measured at a single, stable temperature. It tells you nothing about how the sensor will perform when the engine bay heats up or when the outdoor temperature drops below freezing. This is where a more comprehensive metric becomes essential.
Total Error Band (TEB) is the most honest and useful measure of a sensor's real-world performance. It represents the maximum possible deviation from the ideal output across the entire compensated temperature and pressure range. TEB includes all the individual errors that BFSL ignores: linearity, hysteresis, repeatability, and, most importantly, thermal shifts in zero and span. When a supplier provides a TEB specification, they are giving you a worst-case error budget. This allows you to design your system with confidence, knowing the sensor's output will remain within a predictable band, regardless of most operating conditions.
Another point of confusion is the difference between resolution and usable precision. A sensor's datasheet may highlight a 24-bit Analog-to-Digital Converter (ADC), implying incredibly fine resolution. However, this resolution is meaningless if the sensor's inherent electronic noise (the "noise floor") is high. For example, if the noise accounts for the last 8 bits of the ADC's output, you only have 16 bits of clean, usable data. Always look for a specification on the noise floor or signal-to-noise ratio (SNR) to understand the actual measurement precision you can achieve.
The single greatest cause of premature sensor failure is chemical or physical incompatibility with the process media. The wetted materials—the parts of the sensor that touch the fluid or gas—must be able to withstand the application's chemical composition, temperature, and pressure over the long term.
For a standard Water Pressure Sensor used in municipal or residential applications, 316L stainless steel is often sufficient. It provides good resistance to general corrosion. However, in applications with deionized water, brackish water, or water with high mineral content, oxidation and buildup can become a problem. For these more aggressive environments, a ceramic diaphragm offers superior chemical resistance and prevents the kind of ion leaching that can occur with metals. Ceramic is inert to most chemicals and less prone to mineral scaling.
An Oil Pressure Sensor in an engine or a Hydraulic Pressure Sensor in heavy machinery faces intense pressure cycles. This cyclic loading can cause material fatigue. While 316L stainless steel is common, 17-4 PH (Precipitation Hardening) stainless steel is a far better choice for high-pressure hydraulic applications. It possesses significantly higher tensile strength and fatigue resistance, making it much less likely to fail under repeated pressure spikes of thousands of PSI.
When selecting an Air Pressure Sensor, a key consideration is moisture. For dry, inert gases like nitrogen, a basic sensor with non-hermetic seals may suffice. However, for compressed air lines or natural gas monitoring, moisture is almost always present. A non-hermetic Gas Pressure Sensor is vulnerable to moisture ingress, which can corrode internal electronics and cause drift or failure. For any "wet" gas application, a sensor with a hermetically sealed, welded construction is the only reliable choice.
Certain applications require highly specialized materials to ensure safety and longevity.
Hydrogen Service: Hydrogen molecules are extremely small and can permeate the crystal lattice of standard stainless steel, a phenomenon known as hydrogen embrittlement. This makes the metal brittle and prone to cracking. To prevent this, sensors for hydrogen service often have their diaphragms plated with gold, which acts as an effective barrier.
Oxygen Service: In high-pressure oxygen environments, any hydrocarbon-based oil or grease can auto-ignite and cause an explosion. Sensors for oxygen service must be constructed from specific compatible materials and undergo a special cleaning process to remove all traces of oils. They must be certified as "cleaned for oxygen service."

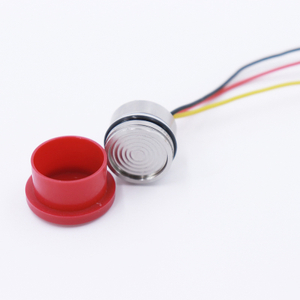

Many pressure sensors use a thin metal diaphragm that transfers pressure via an internal silicone oil fill to the sensing element. This design is robust and cost-effective. However, it carries a risk: if the diaphragm is ruptured by a pressure spike or physical damage, the oil can leak into and contaminate the process media. This is unacceptable in applications like food and beverage processing, medical equipment, or fuel cells. In these cases, a non-oil-filled sensor, which uses a thicker diaphragm or a different sensing technology, is the safer choice, despite potentially higher costs or different performance characteristics.
A sensor's ability to survive in its intended environment is just as important as its measurement accuracy. Mechanical shocks, vibration, temperature extremes, and moisture can all lead to premature failure if the sensor is not properly specified.
Pressure is always measured relative to a reference. Choosing the correct reference type is fundamental to getting a meaningful reading.
| Reference Type | Description | Common Applications |
|---|---|---|
| Absolute | Measures pressure relative to a perfect vacuum sealed inside the sensor. It is not affected by changes in atmospheric pressure. | Barometric pressure measurement, altitude sensing, vacuum applications, and process control where atmospheric changes would introduce errors. |
| Gauge | Measures pressure relative to the local atmospheric pressure. The sensor is vented to the atmosphere. | Tire pressure, tank level monitoring, pipe pressure in industrial plants. This is the most common type. |

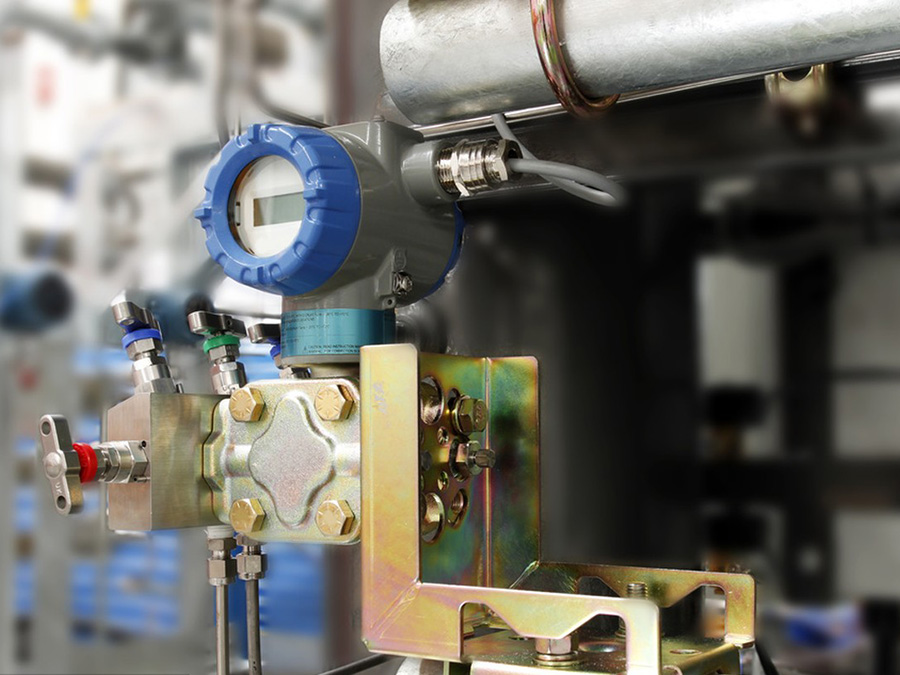

| Differential | Measures the difference in pressure between two separate ports (P1 and P2). | Measuring flow across an orifice plate, monitoring filter blockage (pressure drop), and cleanroom pressurization. |
In hydraulic systems, the rapid closing of a valve can cause the moving fluid to stop abruptly, creating an intense pressure wave that travels back through the system. This phenomenon, known as water hammer or hydraulic shock, can generate pressure spikes ten times the normal operating pressure. These transients can instantly destroy a sensor's delicate diaphragm. To protect against this, it is essential to use a pressure snubber or pulsation dampener. These devices are installed at the sensor's port and restrict the flow, effectively smoothing out the pressure spikes before they reach the sensor. Some advanced sensors have this feature built-in.
The IP rating system defines how well a device is sealed against intrusion from solids (like dust) and liquids (like water). Choosing the correct IP rating is vital for ensuring sensor survival.
IP65: Protected against dust ingress and low-pressure water jets from any direction. Suitable for environments with occasional splashing.
IP67: Fully protected against dust and can be temporarily submerged in water up to 1 meter deep for 30 minutes. Ideal for outdoor equipment that may be exposed to heavy rain or temporary flooding.
IP69K: Provides the highest level of protection. It can withstand high-pressure, high-temperature steam cleaning and washdowns, making it mandatory for food processing and mobile equipment applications.
In applications like heavy machinery, mining equipment, or aerospace, sensors are subjected to constant vibration and severe shocks. The sensing technology itself plays a huge role in durability. Piezoresistive silicon sensors, while very common, have tiny wires bonding the silicon die to the terminals. These wires can fatigue and break under high vibration. In contrast, sputtered thin-film sensors have the sensing circuit directly deposited onto the metal diaphragm. This creates a solid-state molecular bond with no wires to break, making them exceptionally robust and reliable in high-shock environments.
How a sensor communicates with your control system is a critical design choice that affects system complexity, noise immunity, and cost. You must choose an output signal that matches your system architecture.
The terms "sensor," "transducer," and "transmitter" are often used interchangeably, but they have distinct meanings. A basic sensor element outputs a very low-level, unconditioned signal, typically in millivolts (mV). It is inexpensive but requires significant external engineering to amplify, filter, and compensate for temperature effects. A pressure transmitter or transducer, on the other hand, is a complete package. It includes the sensing element and all the necessary signal conditioning electronics to produce a standardized, high-level output. Common outputs include:
4-20mA: A robust, two-wire current loop ideal for industrial environments. It has excellent noise immunity and can be run over very long cable lengths without signal degradation.
0-5V or 0-10V: A voltage output that is simpler to interface with but more susceptible to noise and voltage drops on long cables.
The rise of Industry 4.0 and the Industrial Internet of Things (IIoT) has driven a shift toward digital outputs. Protocols like I2C and SPI are common for board-level communication, allowing a microcontroller to get a direct digital pressure reading. For industrial automation, IO-Link is gaining popularity. It is a point-to-point digital protocol that runs over standard 3-wire sensor cables. IO-Link not only transmits the pressure value but also allows for remote diagnostics, configuration, and health status monitoring, which significantly simplifies maintenance.
For battery-powered devices, such as remote monitoring stations or handheld instruments, power consumption is a primary concern. Every microamp matters. In these cases, you must balance measurement frequency with current draw. A sensor with a low-power "sleep" mode can drastically extend battery life. The datasheet should clearly specify the current consumption during active measurement and in standby mode. A sensor that takes readings quickly and then returns to a low-power state is ideal.
Long-term stability, or "drift," describes how much a sensor's reading changes over time under constant conditions. This is a critical parameter for applications that require consistent measurements over months or years, such as process control or environmental monitoring. Drift can be caused by mechanical stresses in the sensor aging over time or by thermal stresses from manufacturing processes like soldering. A good datasheet will specify drift as a percentage of full scale per year or after a certain number of operating hours (e.g., 1,000 hours). A sensor with poor stability will require frequent and costly recalibration.
Choosing a sensor isn't just about matching specifications; it's about managing risk and understanding the total cost of ownership. A decision made solely on unit price often leads to higher costs down the line.
A basic, uncompensated Pressure Sensor may have an attractive price tag, but it pushes the engineering burden onto your team. You will have to design, test, and manufacture compensation circuitry to correct for temperature effects. You will need to implement a calibration routine in your production line for every single device. Most importantly, a cheaper sensor may have a higher field failure rate. The cost of a single field replacement—including technician time, travel, and system downtime—can easily exceed the cost of hundreds of high-quality sensors. A fully compensated and calibrated transmitter, while more expensive upfront, often has a much lower TCO.
Consider what happens when you need to scale production or replace a sensor in the field. If your sensors have a wide performance spread, you may need to calibrate each one individually with its mating control board. This is a production nightmare. A sensor with high interchangeability—meaning any sensor of the same model will perform within a tight, predictable band—allows you to swap units without recalibrating the entire system. This drastically simplifies manufacturing and field service.
These two safety ratings are non-negotiable. They define the sensor's overpressure survivability.
Proof Pressure: The maximum pressure that can be applied to the sensor without causing a permanent change in its performance specifications. For example, a 100 PSI sensor might have a proof pressure of 200 PSI. After being exposed to 200 PSI, it should return to its normal operating characteristics.
Burst Pressure: The maximum pressure the sensor can withstand before it ruptures and leaks the process media. This is a critical safety specification. Burst pressure is typically 3 to 5 times the sensor's rated range. You must ensure the burst pressure provides an adequate safety margin for the worst-case pressure spikes in your system.
To systematically shortlist the right sensor, follow this logical four-step process:
Identify Media and Environment: First, define the gas or liquid the sensor will touch, along with the minimum and maximum operating temperatures. This immediately narrows down the required wetted materials and IP rating.
Define Required TEB: Determine the maximum acceptable error for your system across all operating conditions. Ask for the Total Error Band (TEB), not just the BFSL accuracy at room temperature.
Select Electrical Output: Based on your control system, cable lengths, and the level of electrical noise in the environment, choose the appropriate output (e.g., 4-20mA for long industrial runs, I2C for board-level, or IO-Link for smart factory integration).
Verify Mechanical Fit and Pressure Range: Finally, ensure the sensor's pressure range has an adequate safety margin above your normal operating pressure. Verify that the physical size and port threading (e.g., NPT, G1/4) match your mechanical design.
Selecting the right pressure sensor requires moving beyond simple datasheet comparisons and adopting a holistic, risk-based approach. The golden rules are clear: prioritize Total Error Band over headline accuracy, ensure absolute material compatibility with your media, and never underestimate the destructive power of environmental factors like pressure transients and vibration. True value lies not in the lowest unit price but in the sensor's long-term reliability and the confidence it provides.
When evaluating potential suppliers, challenge them to provide data that reflects real-world conditions. A trustworthy partner will be transparent about their TEB data, provide material certifications, and help you understand the trade-offs between different technologies. The best practice is to test candidate sensors not just at "time-zero" in a lab but under the harshest end-of-life conditions your application will experience. This rigorous approach ensures that the sensor you choose will be a reliable component, not a future point of failure.
A: While often used interchangeably, a "pressure sensor" typically refers to the raw sensing element that outputs a low-level millivolt signal. A "pressure transducer" or "transmitter" is a more complete assembly that includes the sensor element plus integrated electronics to condition, amplify, and convert the signal into a standardized high-level output like 4-20mA or 0-10V. Transducers are much easier to integrate into control systems.
A: If a water pressure sensor is exposed to freezing temperatures, the expanding ice can permanently damage the diaphragm. The best prevention is to install the sensor in a heated, controlled environment. If that's not possible, you can use heat tracing on the pipes leading to the sensor or install the sensor on a short, oil-filled capillary line that isolates it from the freezing water.
A: Sensor drift can be caused by several factors. The most common is mechanical stress relaxation within the sensing element, which happens naturally over its operational life. Thermal stress from repeated temperature cycles can also contribute. In harsh environments, chemical attack on the diaphragm or internal contamination from a leak in the housing can also cause readings to drift. Choosing a sensor with a good long-term stability specification is key.
A: No, this is generally not recommended. An air pressure sensor is typically built with seals (like Buna-N or Viton) and materials designed for clean, dry air. Hydraulic oils and other petroleum products can attack and degrade these seals, leading to leaks and sensor failure. You should always use a sensor specifically designed with wetted materials that are certified as compatible with the specific oil or fluid you are measuring.
A: The Total Error Band (TEB) is the most important accuracy specification. It represents the sensor's maximum possible error across its entire compensated pressure and temperature range. Unlike basic accuracy ratings (like BFSL), TEB includes all sources of error: non-linearity, hysteresis, and temperature effects. You should care because it tells you the sensor's true, worst-case performance in a real-world application, not just in a lab at room temperature.
