When a critical system shuts down, the immediate instinct is often to replace the suspected component to get back online quickly. In the world of industrial and HVAC diagnostics, the pressure sensor is frequently the first casualty of this "parts swapping" mentality. However, industry data suggests that 60–70% of perceived sensor failures are not actually defects in the component itself. They are often the result of installation errors, environmental factors, or systemic electrical issues. Replacing a fully functional Gas Pressure Sensor without validating the root cause creates a cycle of recurring costs and unexplained downtime.
This approach significantly inflates the Total Cost of Ownership (TCO). Operators waste budget on unnecessary hardware while the underlying issue—such as a blocked impulse line or a ground loop—remains unresolved. This guide defines a systematic transition from basic guesswork to advanced diagnostic protocols. We will cover the essential testing methods for both binary switches used in HVAC safety circuits and analog transducers common in industrial automotive applications. You will learn to look beyond the sensor to validate the integrity of the entire measurement loop.
Environment First: Most "sensor failures" are actually blocked ports, condensate buildup, or electrical ground loops.
Dynamic vs. Static: Testing a sensor at rest (static) is insufficient; dynamic testing under load using a T-fitting or reference gauge is required for valid data.
Drift vs. Failure: Distinguish between Zero Offset (calibration drift) and Span Error (structural damage) to decide between recalibration and replacement.
Verification Margin: A healthy sensor requires a specific pressure safety margin; readings hovering exactly at the trip point indicate system design issues, not sensor defects.
Before you ever touch a multimeter to the terminals, you must establish an "Environment First" protocol. Experienced technicians know that a sensor is only as accurate as the environment it monitors. Testing the electrical output of a sensor that is physically choked by debris will inevitably lead to a false positive diagnosis. You might condemn a perfectly good component because it is accurately reporting a bad condition.
The most common culprit in gas pressure diagnostics is physical obstruction. Impulse lines and sensor ports act as the veins of the measurement system. If these pathways are constricted, the sensor cannot "feel" the true system pressure. We frequently find spider webs, soot, or nesting materials inside open ports, particularly in equipment that sits idle during off-seasons.
Condensate Trap Analysis is equally critical, especially in high-efficiency gas systems. These systems produce significant moisture. If the tubing lacks a proper slope or drain, water accumulates in the low points. This creates a "water column" effect that dampens the gas pressure signal. The symptom is often a fluctuating signal or a delayed response time. The sensor is working correctly, but the hydraulic block created by the water prevents the gas pressure from reaching the diaphragm instantly.
Once physical pathways are clear, turn your attention to the electrical environment. A sensor requires clean power to generate a clean signal. Voltage supply verification is the first step. You must confirm that the source voltage reaching the component matches the specifications provided by the pressure sensor manufacturer. For example, supplying 24VDC to a 5V logic sensor will destroy it, while undervolting a 4-20mA loop will result in a signal that clips at the top end of the range.
Ground Loop Detection is a more subtle but pervasive issue. This occurs when shielded cables are grounded at both ends rather than just at the controller end. This creates an antenna loop that picks up electromagnetic interference from nearby motors or variable frequency drives (VFDs). The resulting noise is often mistaken for sensor instability or internal failure. A quick check of the wiring termination can save hours of troubleshooting.
The physical stress placed on a sensor housing can distort its output. Mechanical mounting orientation matters, especially for low-pressure sensors where the weight of the diaphragm itself constitutes a measurement variable. If a sensor is calibrated for vertical installation but mounted horizontally, gravity may induce a slight shift in the reading.
Furthermore, inspect the process connection for over-torque stress. Technicians often overtighten threaded connections to prevent leaks. However, excessive torque transmits stress through the housing to the sensing element. This mechanical strain causes a permanent Zero Offset, where the sensor reads pressure even when the system is open to the atmosphere.
Once you rule out environmental factors, you can proceed to validate the electronic integrity of the component. This is the decision stage where you determine if the internal circuitry is functioning within specification. The testing method varies significantly depending on whether you are diagnosing a binary switch or an analog transducer.
For safety switches, the goal is to verify the state change at the correct pressure. Many technicians rely on the "audible beep" of a continuity tester. This is unreliable. A switch might be pitted or corroded enough to prevent current flow but still conductive enough to trigger a beep.
Continuity vs. Resistance: Instead of listening for a beep, use a multimeter to measure the actual resistance across the closed contacts. A healthy switch should read near 0Ω. If you measure resistance greater than 1Ω, the internal contacts are pitted, carbonized, or failing. This high resistance can cause a voltage drop that prevents the control board from recognizing the closed circuit.
The Voltage Drop Method: The most accurate test occurs while the circuit is live. Measure the voltage across the switch terminals.
Closed Switch: Should show a ~0V drop. This means the electricity is passing through the switch without resistance.
Open Switch: Should show the full source voltage (e.g., 24V). This means the potential difference is sitting across the open gap.
If you measure 24V across a switch that is supposed to be closed, you have confirmed an "Open" fault without removing a single wire.

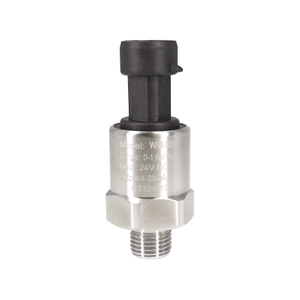

Analog transducers require a more nuanced approach because they report a range of values rather than a simple on/off state.
Zero Output Check: Start by measuring the signal output at atmospheric pressure (zero gauge pressure). For a 0-10V sensor, you should see exactly 0V. For a 4-20mA sensor, you should see exactly 4mA. A deviation here (e.g., reading 5mA at zero pressure) indicates a Zero Shift. This usually points to installation stress or thermal shock rather than total failure.
Span/Linearity Check: If the zero point is correct, apply a known reference pressure, such as 50% of the sensor's rated range. The output should scale linearly. If a 100 PSI sensor reads correctly at 0 PSI but reads 40 PSI when supplied with 50 PSI, the diaphragm is likely plastically deformed. This non-linearity confirms the sensor cannot be trusted across its full range.
Older systems, particularly in vintage automotive applications like the D-Jetronic MPS, require specific protocols. Before electrical testing, you must perform a vacuum-holding test. These sensors rely on a mechanical seal to hold a vacuum. If the unit cannot hold a vacuum for at least 5 minutes, the diaphragm is ruptured. No amount of electrical troubleshooting will fix a mechanical leak.
Static bench testing has limitations. It cannot replicate the vibration, temperature, and transient pressure spikes of a live system. The definitive test for verifying sensor accuracy is dynamic testing using the "T-Method."
To perform this test, use a T-fitting to plumb a calibrated manometer or master gauge in parallel with the suspect sensor. This allows you to see exactly what the sensor is seeing in real-time. Inline testing beats bench testing because it captures system transients. You can observe how the pressure ramps up, stabilizes, and drops off. These dynamic behaviors often reveal system faults that look like sensor faults when viewed in isolation.
Watch the manometer closely during startup cycles, such as a draft inducer ramp-up. You are looking for stability. A healthy system should reach a stable pressure plateau. If the manometer needle or digital readout is fluttering wildly, the sensor signal will also be erratic.
Success Criteria: The system pressure must stabilize above the sensor's "Make" point (where it engages) and below the "Break" point (where it disengages) with a distinct safety margin. A healthy margin is at least 10–15%. If the actual system pressure is hovering exactly at the trip point of the switch, the sensor will chatter or cycle rapidly. This is not a sensor defect; it is a system design or tuning issue.
Comparing the "Truth" (Manometer) against the "Report" (Sensor) leads to a clear verdict:
| Scenario | Manometer Reading | Sensor Reading | Verdict |
|---|---|---|---|
| Scenario A | Low Pressure | Low Pressure / Fault | System Fault. The sensor is accurately reporting a problem (leak, bad pump, broken fan). Do not replace the sensor. |
| Scenario B | Normal Pressure | Low Pressure / Fault | Sensor Failure or Blockage. The system is working, but the sensor cannot see it. Check for port blockage first, then replace the sensor. |
Not all "bad" readings warrant a trash can. Using a decision framework based on your test data helps you decide the most cost-effective next action.
Symptoms: The sensor shows a consistent error across the entire range. For example, it reads 5 PSI high at 0 PSI, and 105 PSI at 100 PSI.
Action: This is often correctable. Many modern transmitters allow for a "Zero Trim" calibration. Check the documentation from the Pressure Sensor manufacturer to see if this is adjustable. Also, check for installation torque issues; loosening and re-tightening the sensor can sometimes relieve the stress causing the shift.
Symptoms: The error magnitude increases as pressure increases. It might be perfect at 0 PSI but 10% off at full scale.
Action: This indicates diaphragm fatigue, corrosion, or over-pressure damage. It is non-recoverable. Replace immediately. You cannot calibrate out a span error safely.
Symptoms: You get different readings for the exact same pressure point depending on whether the pressure is rising or falling to get there.
Action: This points to internal mechanical friction or fluid contamination inside the sensing element. The mechanism is "sticky." Replace.
Symptoms: The output drops to zero randomly or spikes to full scale for a millisecond.
Action: This is rarely the sensor itself. It is usually wiring, loose terminations, or Electromagnetic Interference (EMI). Do not replace the sensor until you have validated the cabling continuity and shielding.
If your diagnostics confirm that the sensor has failed, simply buying the same part number might lead to the same failure next year. Use the failure data to source a more robust replacement from a reputable pressure sensor provider.
If the previous sensor failed due to a ruptured diaphragm or span error, the system likely experiences pressure spikes (Water Hammer or Gas Surges) that exceed the sensor's limit. Select a replacement with a Proof Pressure rating of 2x–3x the nominal system range. This provides a buffer against transient spikes without sacrificing measurement accuracy.
Corrosion-induced failure requires a material change. Ensure the wetted parts—the components that actually touch the gas—are chemically compatible. Standard brass may fail in corrosive environments where Stainless Steel or Ceramic sensors would thrive. Incompatibility leads to pitting and eventual sensor drift.
Consider the trade-off between cheap, sealed units and higher-end modular units. Sealed units are "throw-away" items. Higher-end options often feature field-adjustable zero and span settings. While the upfront cost is higher, the ability to recalibrate rather than replace can reduce long-term maintenance costs. Additionally, look for pre-calibrated, temperature-compensated sensors. These reduce the labor time required for future diagnostics because they maintain accuracy across wider temperature swings.
The philosophy of "Test, Don't Guess" is the only way to maintain modern gas systems efficiently. Replacing a sensor without verification is a gamble that often pays out in repeat service calls and wasted budget. Valid testing requires a triangulation of data: comparing the Commanded State (what the controller is asking for), the Actual Pressure (what your calibrated manometer reads), and the Reported State (the electrical output of the sensor).
By following the steps outlined above—isolating the environment, validating electrical integrity, and performing dynamic load testing—you can confidently pinpoint the root cause. Finally, always review your maintenance logs. If you see repeat failures in the same location, stop swapping parts. Look for a systemic design flaw or an environmental mismatch that requires a different class of sensor entirely.
A: No, not accurately. While you might spot physical damage visually, you cannot see voltage drops or resistance changes with your eyes. "Audible" testing (listening for clicks) or relying on system error codes is guessing, not testing. A multimeter is essential to quantify the electrical signal and confirm if the switch contacts are truly closing with zero resistance.
A: Use a continuity tester or ohmmeter. First, identify the Normal State (Normally Open vs. Normally Closed) from the label. Disconnect the wires and measure across the terminals with no pressure applied. If a Normally Open (NO) switch has continuity at rest, it is stuck closed. If a Normally Closed (NC) switch has infinite resistance at rest, it is stuck open.
A: A pressure switch is a binary device; it provides a simple On/Off signal for safety limits or setpoints. It tells the system "Yes/No." A pressure transducer (or transmitter) provides continuous monitoring, outputting a variable signal (like 4-20mA) that corresponds to the exact pressure level. Transducers are used for active feedback control.
A: Immediate failure is almost always due to installation error. The most common cause is over-torquing the process connection, which warps the diaphragm and causes a permanent offset. Another cause is port misalignment or using the wrong thread sealant, which can block the sensor port instantly. Always use a torque wrench and check thread compatibility.
