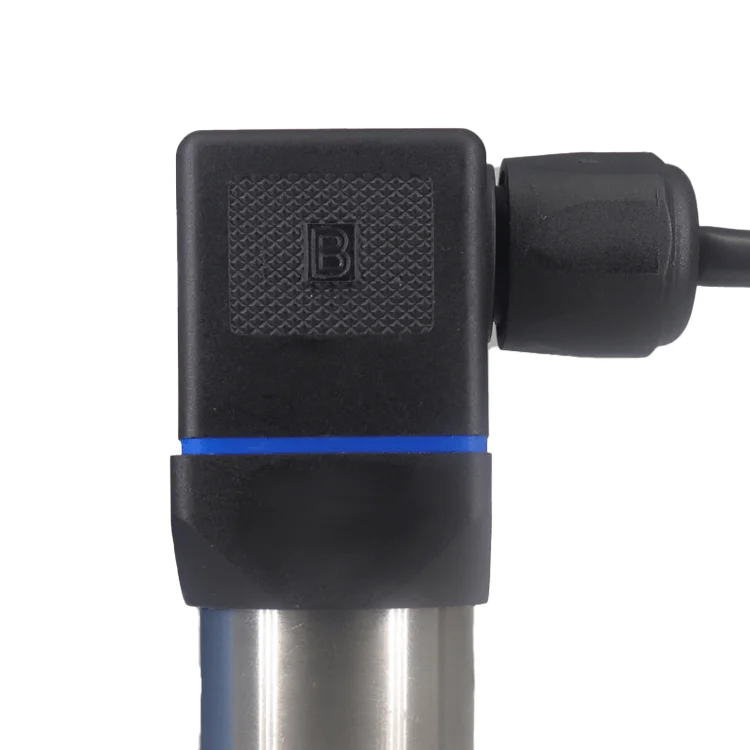

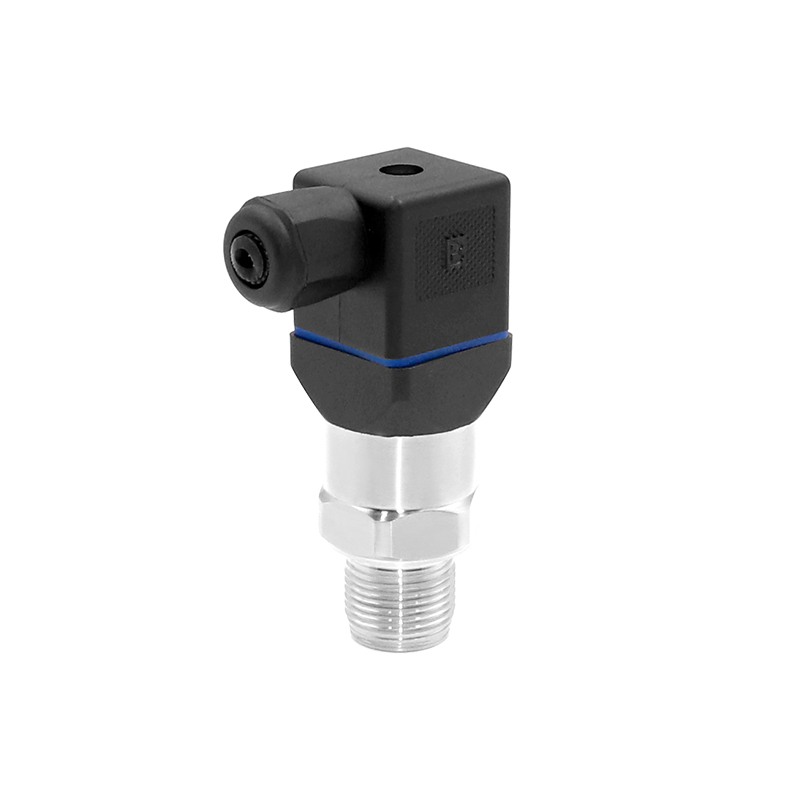

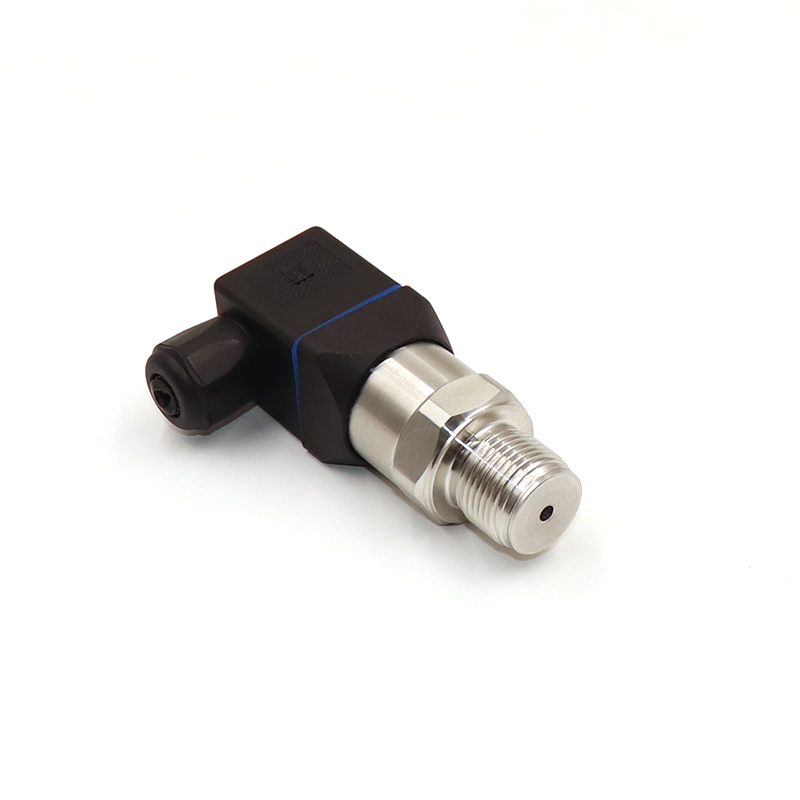

Hirschmann 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Gas

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.

WNK5S pressure transmitters are suitable for:

     1.Gauge,absolute and differential pressure measurement in gases,steam or liquids in areas of process control field.
     2.Level,volume or mass mearsurement in liquids.

WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series. It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.

WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled
sensor, intelligent digital circuit with precise temperature characteristic compensation, it is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.

Ready to ship,Mini brass pressure sensor low cost unit price $6 USD.

WNK85MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is over 3-5 times of the range, completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. As high output and wide range of its core ceramic capacitive sensor, WNK85MA is especially suitable for harsh industrial environment pressure measurement.

WNK811 is a series of high performance compact pressure transducer, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 10 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

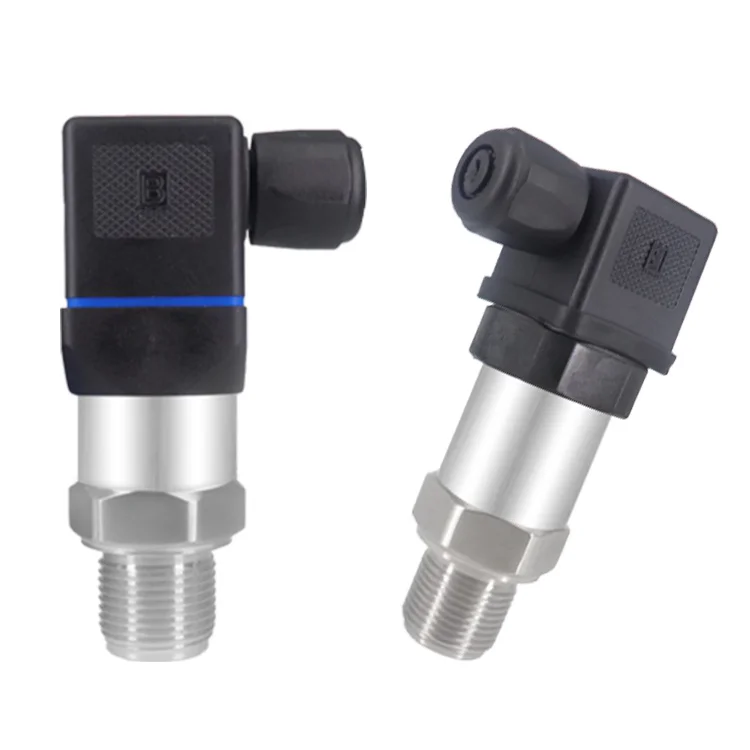

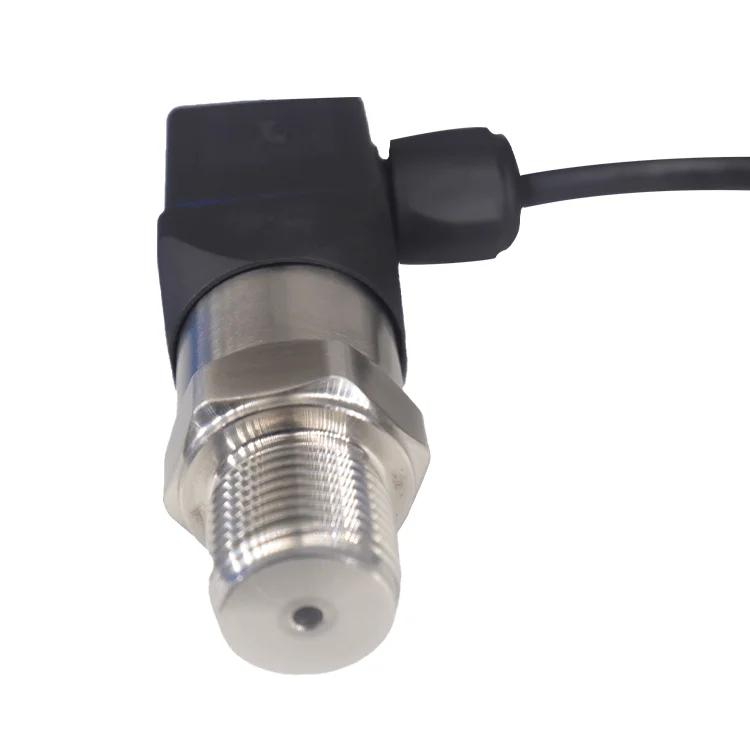

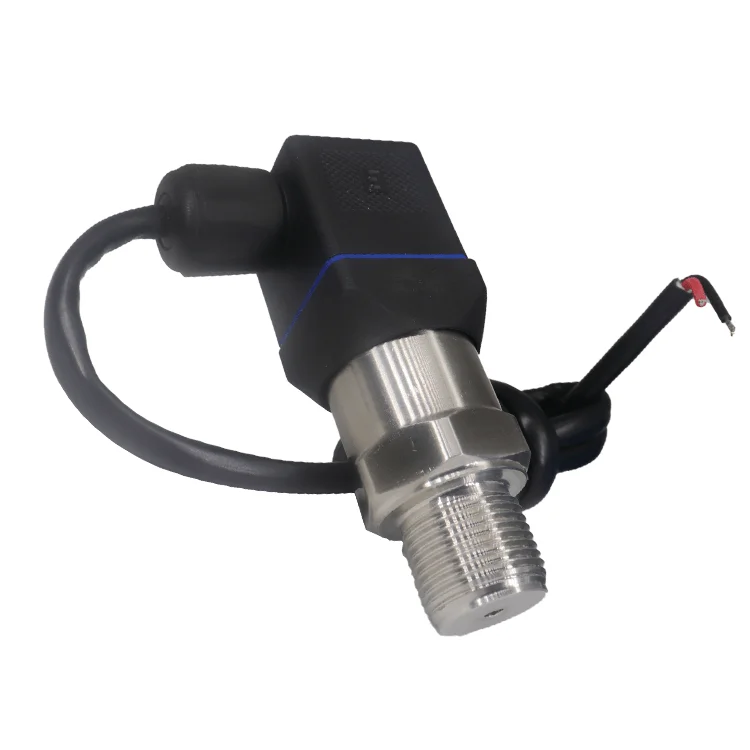

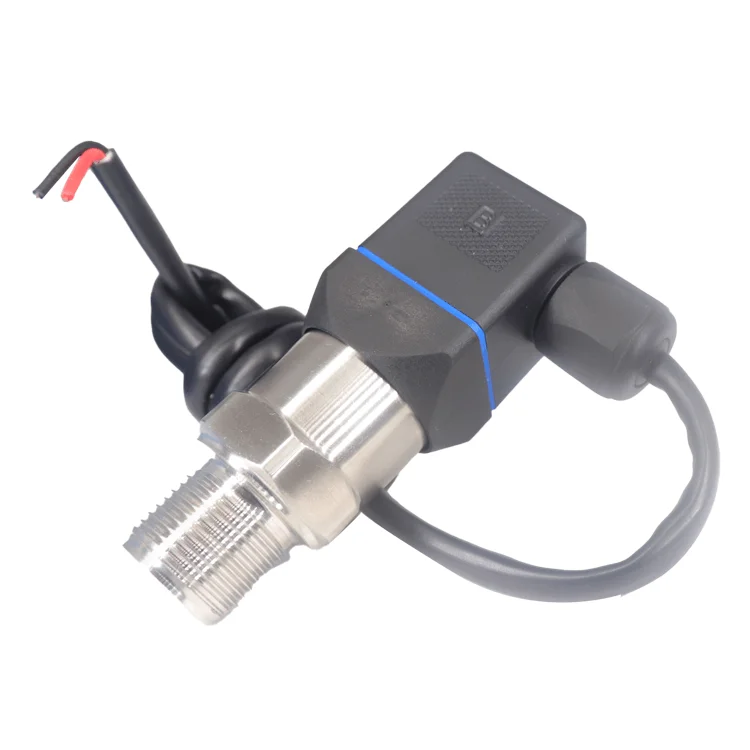

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core.It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and etc.With certification of UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

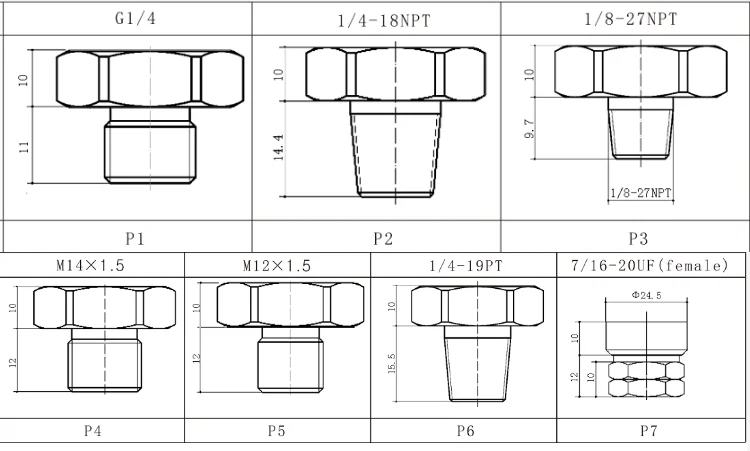

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.
