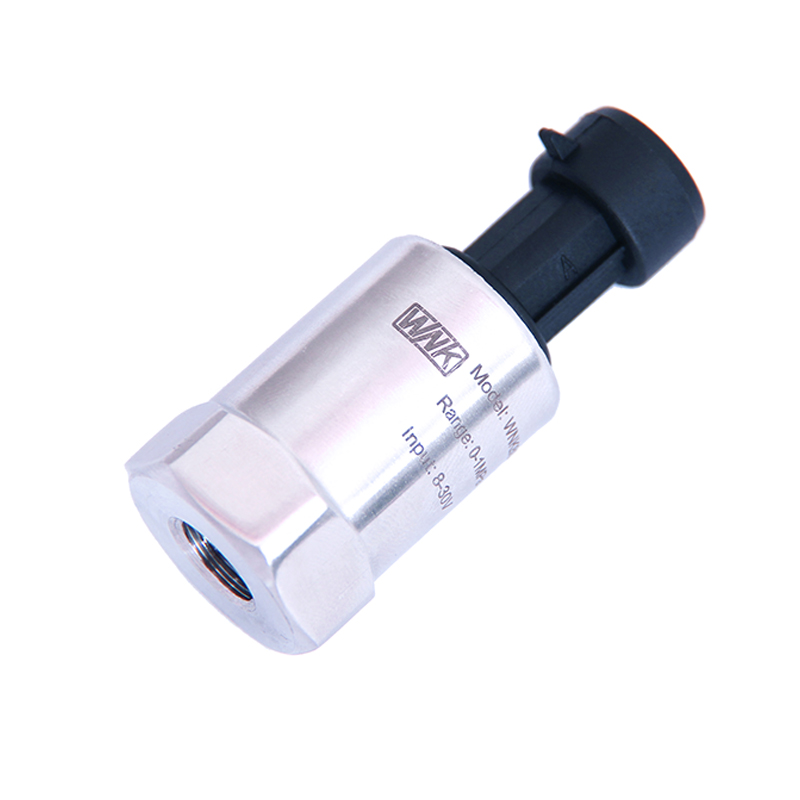

WNK 0.5-4.5V 4-20mA Pressure Sensor for Air Compressor Refrigeration HVAC

Availability:
Quantity:
Inquire Add to Basket

  • WNK80ma

  • WNK

Product Description
Applicable media
Liquid, gas and steam
Pressure range
0-60bar
Cell
Ceramic capacitive pressure sensor
Pressure measurment
Gauge Pressure, absolute pressure and sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply
24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)
1%F.S.
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
Electrical connection
Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection
G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material
304 stainless steel(316SS for inner core)
Protection
IP65
WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dryceramic capacitive pressure sensor. It has features of anti corrosion, anti-wear, shock resistance and vibration resistance. lts anti-overload capacity is 5~10 times of therange, completely solved poor overload in small range of other sensors. ln addition to general ranges of normal sensors, itsmost outstanding characteristic is the positive and negativegauge pressure function. As high output and wide range of itscore ceramic capacitive sensor, WNK8OMA is especially suitablefor harsh industrial environment pressure measurement.
Product Show

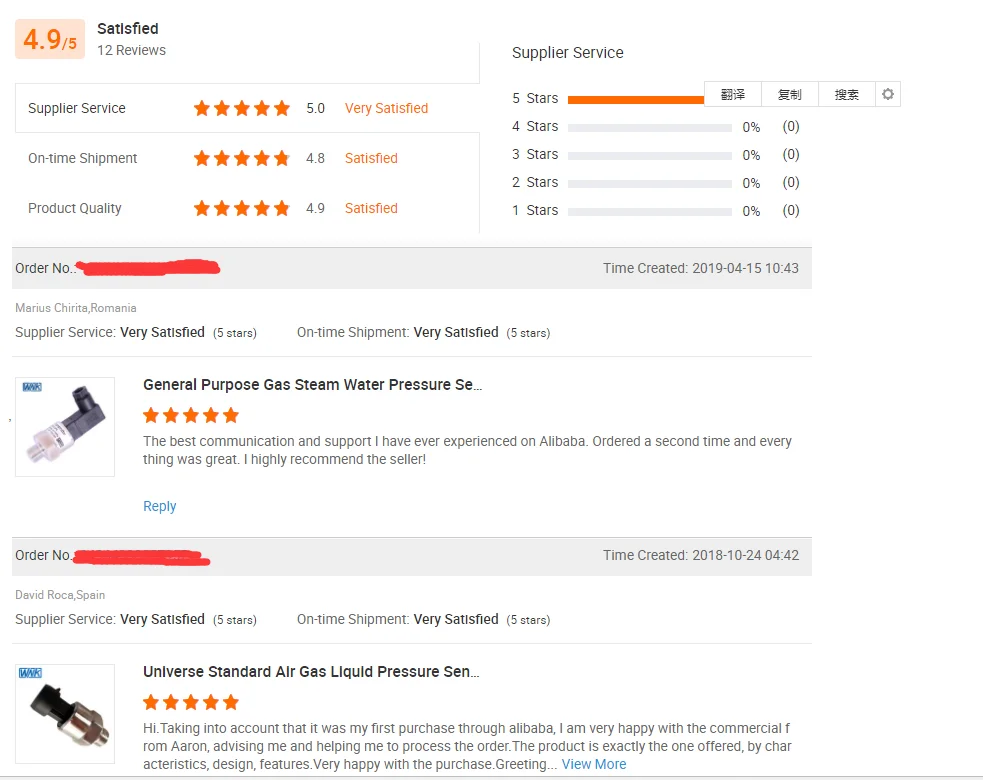

Customer Feedback
