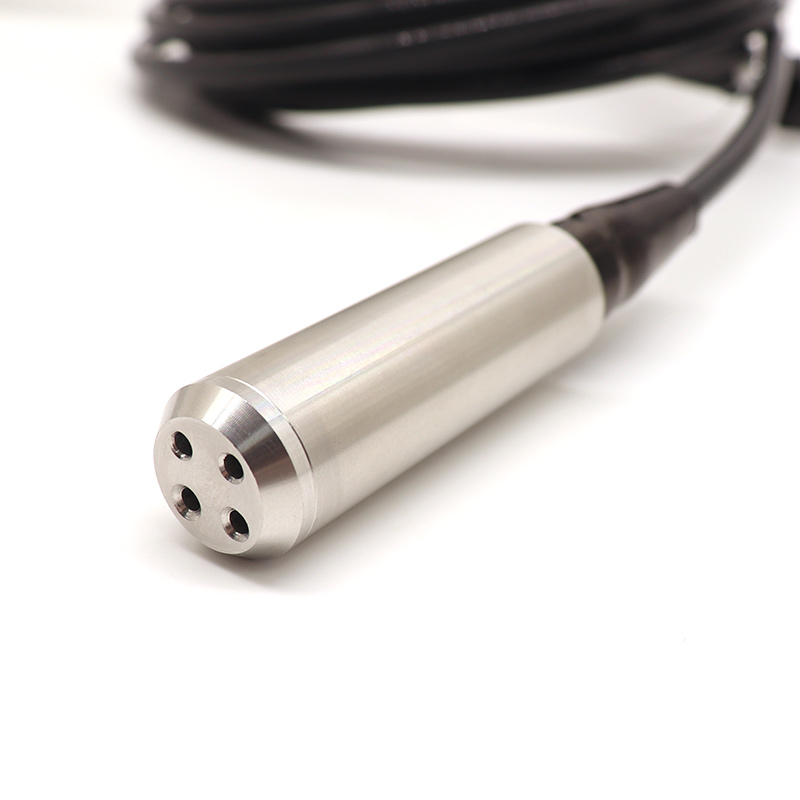

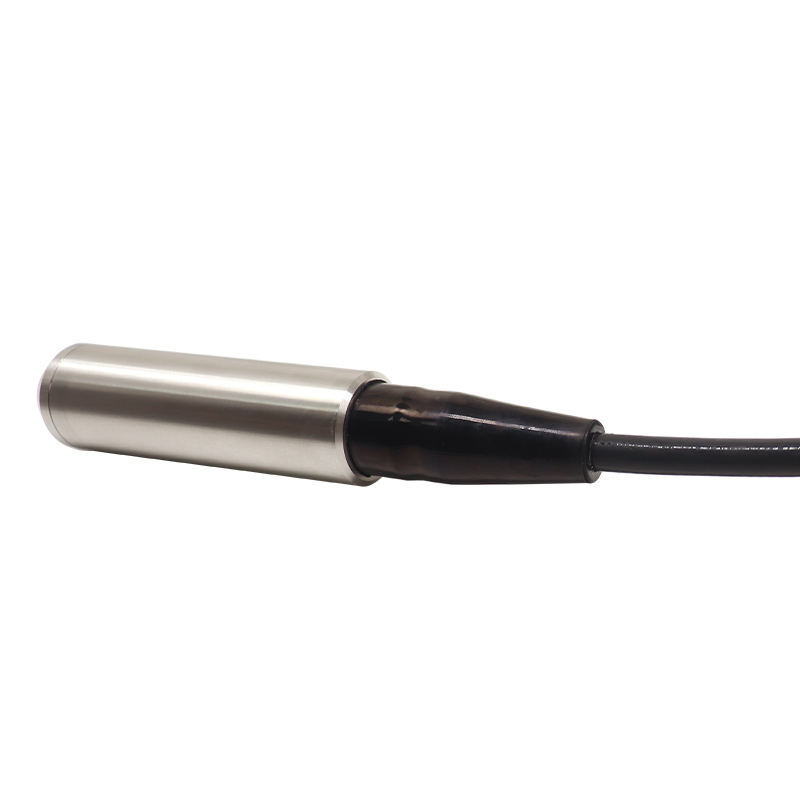

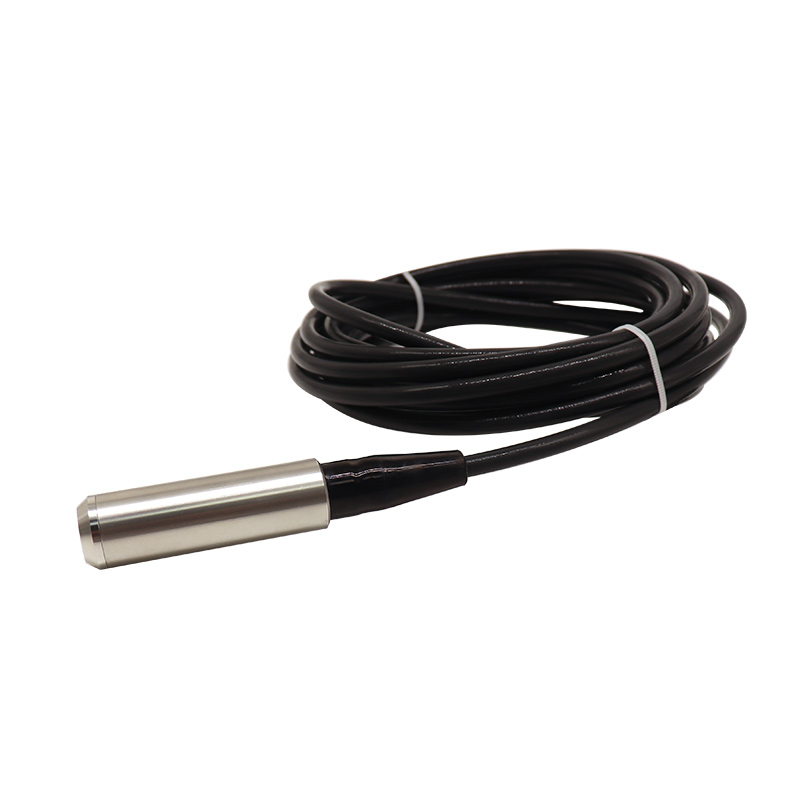

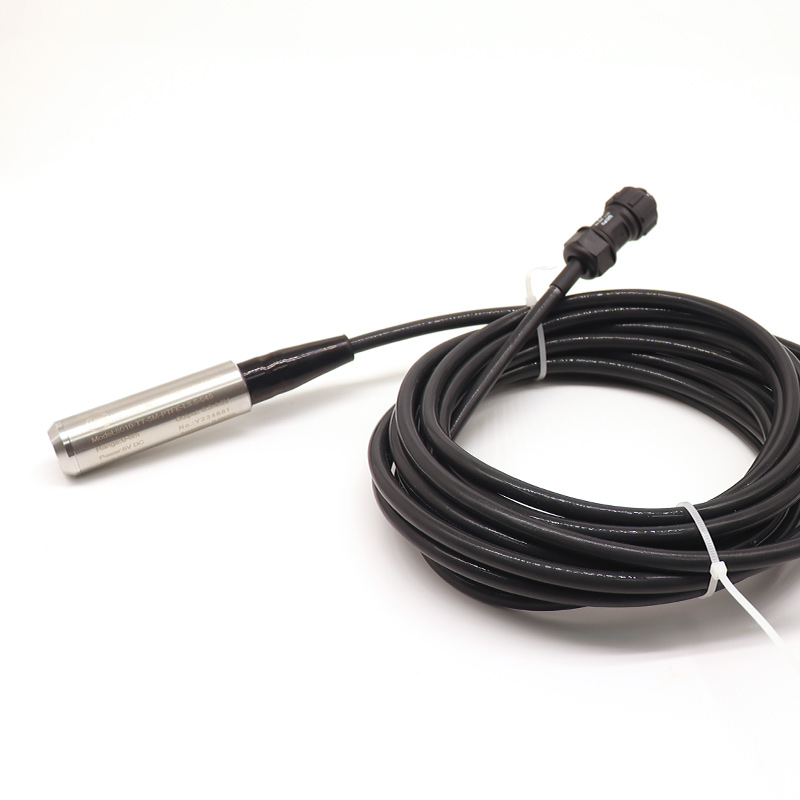

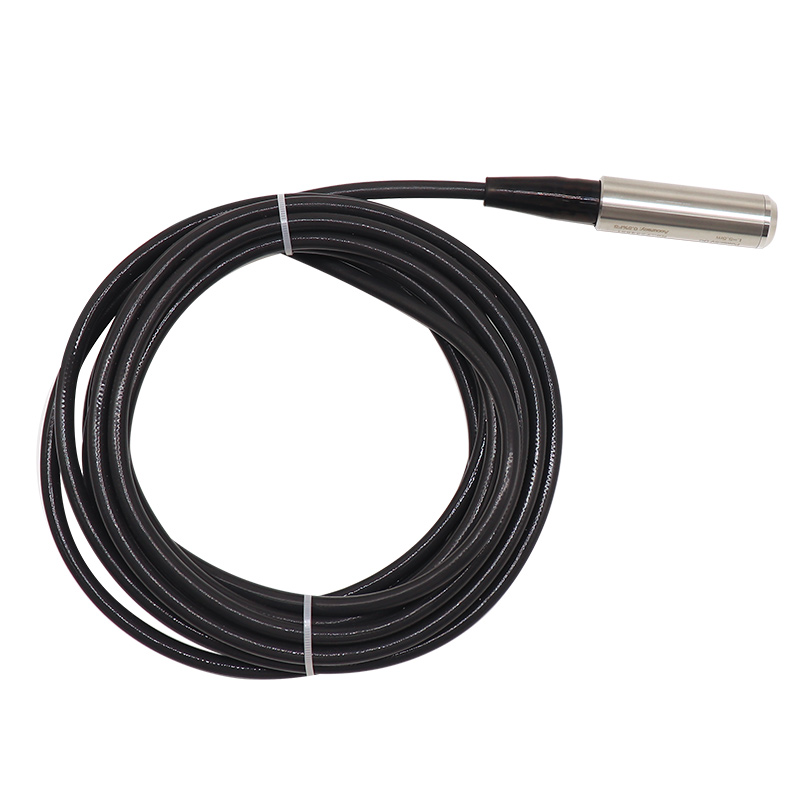

WNK 4-20mA 0-10V Submersible Hydrostatic Water Level Sensor Detector for Tank

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Availability:
Quantity:
Inquire Add to Basket

  • WNK8010

  • WNK

Product Description
Output
4-20mA, 0-5V, 1-5V, customization
Measured Range
0-0.5~200mH2O
Max overload
150% of sensor range
Applicable Media
Liquid, Water
Accuracy
≤ ±0.2%FS,
Long Term Stability
±0.25% FS/year
Housing Material
Stainless steel
Cable Material
Polyvinyl Fluoride, PTFE
Power supply
24V DC
Operating Temperature
-30~85℃
Compensation Temperature
-20~70℃
Protection Class
IP68

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Technical Parameters

Ordering Code

Dimensions - IP68 Sumbersible Liquid Level Sensor

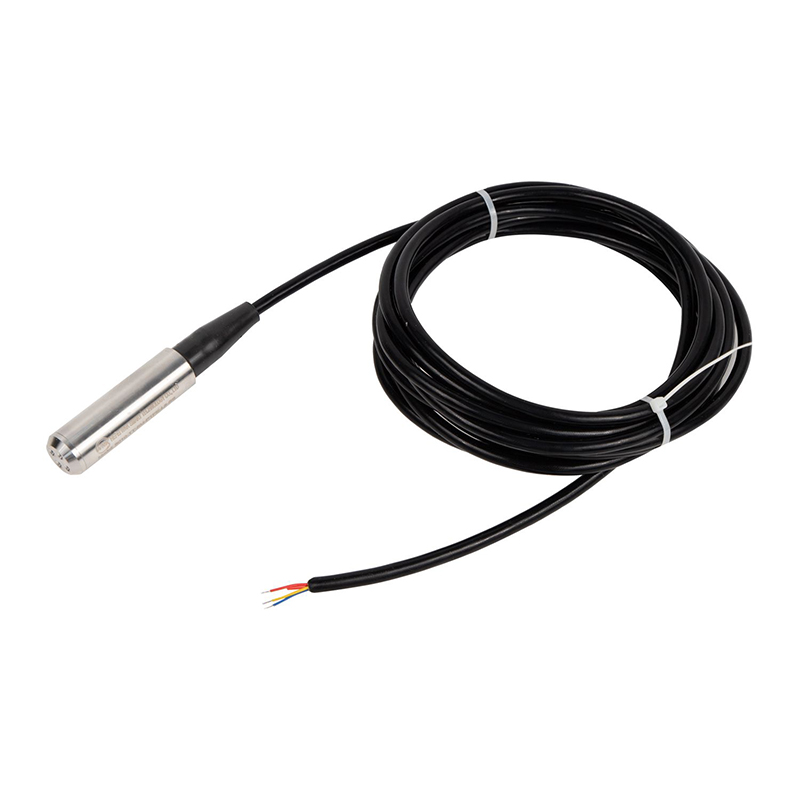

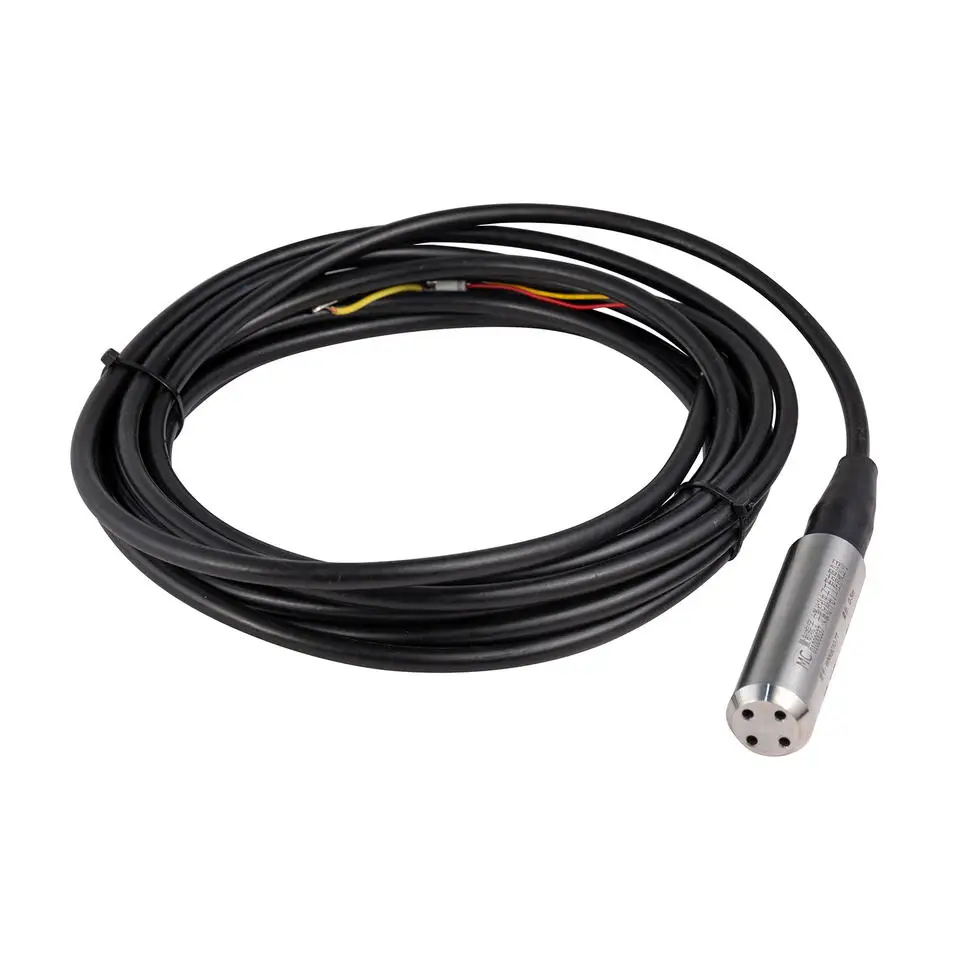

Product Show
