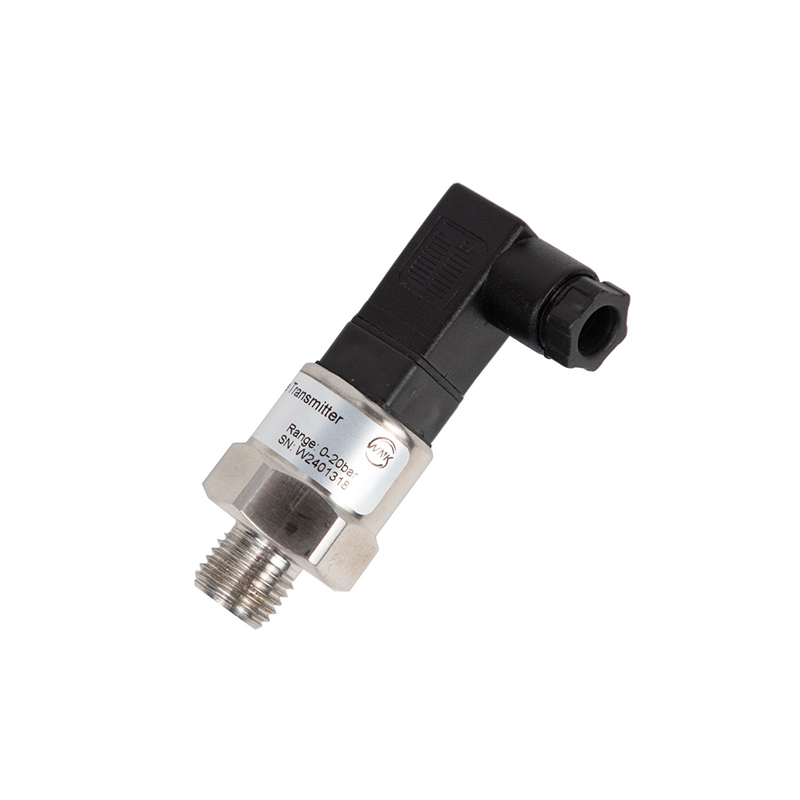

WNK 4-20ma Water Pressure Transmitter Sensor for HVAC and Water Treatment

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dryceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. lts anti-overload capacity is 5~10 times of therange, completely solved poor overload in small range of other sensors. ln addition to general ranges of normal sensors, itsmost outstanding characteristic is the positive and negativegauge pressure function. As high output and wide range of itscore ceramic capacitive sensor, WNK8OMA is especially suitablefor harsh industrial environment pressure measurement.
Availability:
Quantity:
Inquire Add to Basket

  • WNK80ma

  • WNK

WNK Water Treatment Pressure Sensor 0.5-4.5V


Attribute Value
Measured media Water, Air, Gas, Steam
Housing material 304SS, 316SS
Accuracy 0.5%FS
Pressure range 10kpa, -100kpa...70Mpa
Applications Water Air Refrigerant HVAC, Automobile
Output signal 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
Pressure Type Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating IP65
Technical Details
Applicable media: Liquid, Gas
Pressure Range: 0-60bar
Pressure Type: Gauge Pressure, Absolute pressure, Sealing pressure
Output: 4-20mA/0.5-4.5V/1-5V/0-10V/I2C
Accuracy: 1%F.S.(Typical), 0.5%F.S.(Typical)
Power: 24VDC/12VDC/5VDC/3.3V
Compensation temperature: -20~85ºC
Ambient temperature: -40~125ºC
Working temperature: -40~125ºC
Temperature drift (zero): ±0.15% F.S. (-20~85ºC)
Temperature drift (full range): ±0.15% F.S. (-20~85ºC)
Power connection: Parkard, M12, DIN43650, Cable outlet
Mechanical connection: G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material: 304 stainless steel (inner core is 316 stainless steel)
Protection: IP65
Product Overview

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is 5~10 times of the range, completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. As high output and wide range of its core ceramic capacitive sensor, WNK80MA is especially suitable for harsh industrial environment pressure measurement.

Applications

  • Automobile, Compressor and Refrigeration Industry-Engineering machinery

  • Pressure control and monitor

  • Water treatment system

  • Hydraulic and Pneumatics

  • HAVC and BAS Control

  • Pump, fitness equipment, household appliances

  • Factory Automation

  • Fluid Control and Instrumentation Systems

Customer Feedback

Customer Feedback

Electrical Connection


Product Show
