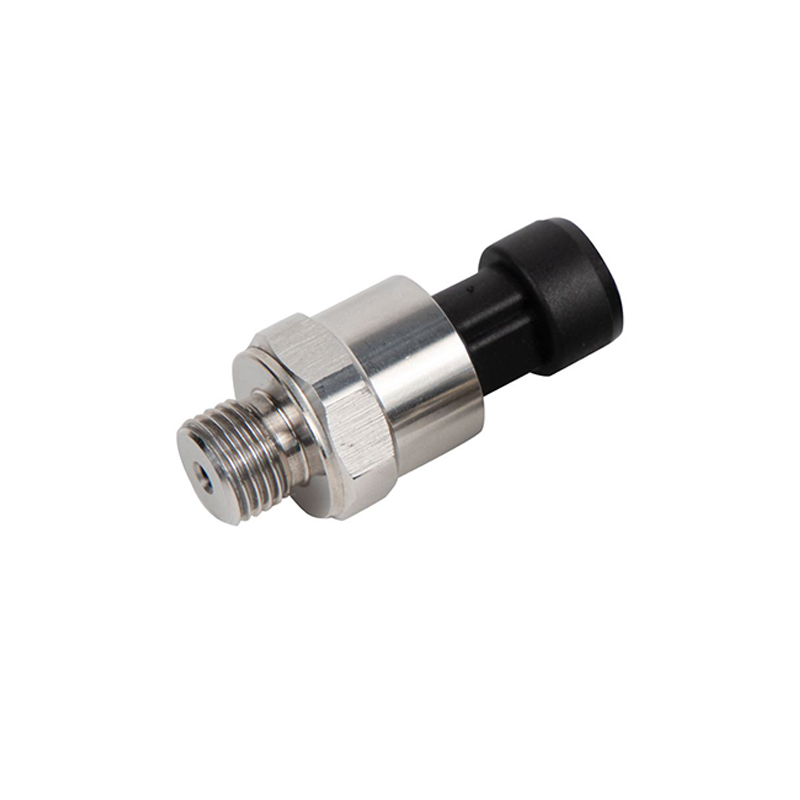

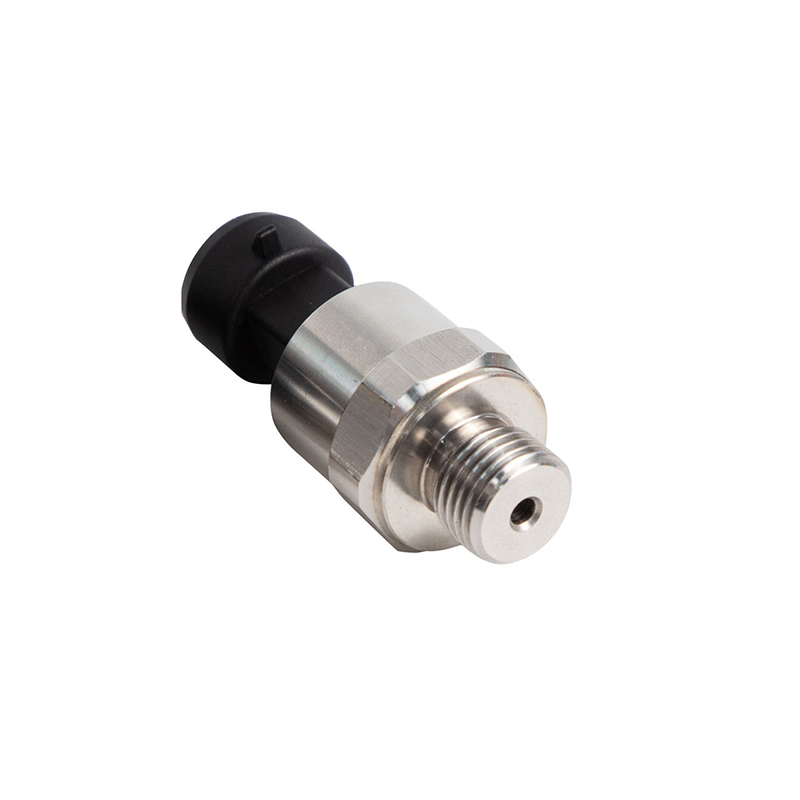

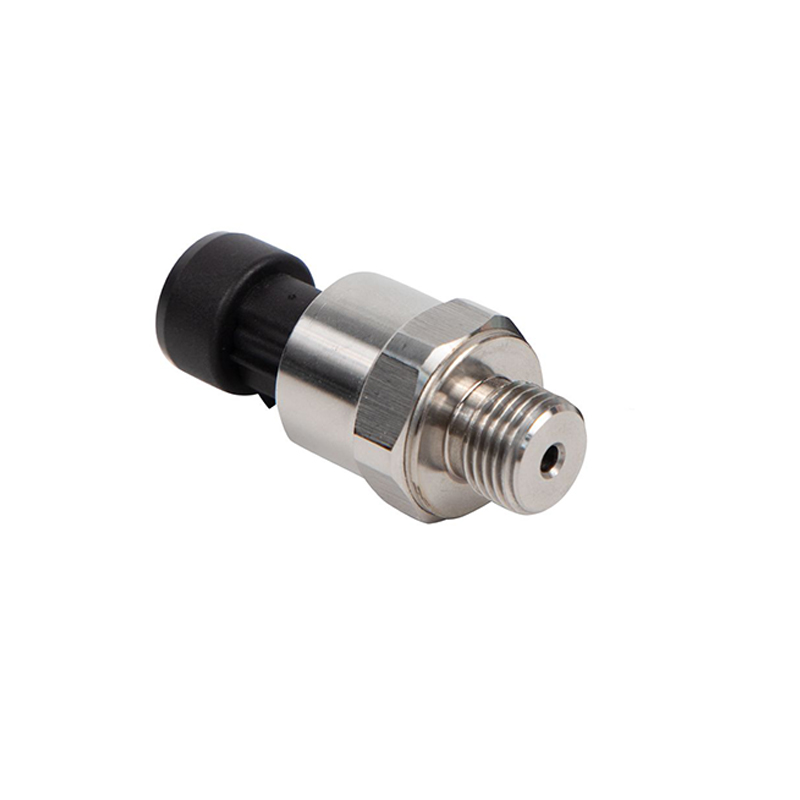

WNK 5V Pressure Transducer 200Psi Drinking Water Pressure Sensor 4-20mA

The WNK125P is a diffusible silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and does not require any O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liquids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in automotive,transmission, air conditioning and oil pressure measurement applications.
Availability:
Quantity:
Inquire Add to Basket

  • WNK125P

  • WNK

Product Description
The WNK125P is a diffusible silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and does not require any O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liquids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in automotive,transmission, air conditioning and oil pressure measurement applications.
Applicable media
Liquid, Gas
Pressure Range
5bar,10bar,20bar,40bar
Pressure measurment
Gauge Pressure,Absolute pressure
Output
0.5~4.5V
Accuracy(linearity,Hysteresis and Repeatability)
1%F.S.(Typical)
Power supply
4.75~5.25VDC
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
Power(electrical) connect
Customization Connector, Cable outlet
Mechanical Connection
G1/4
Housing Material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

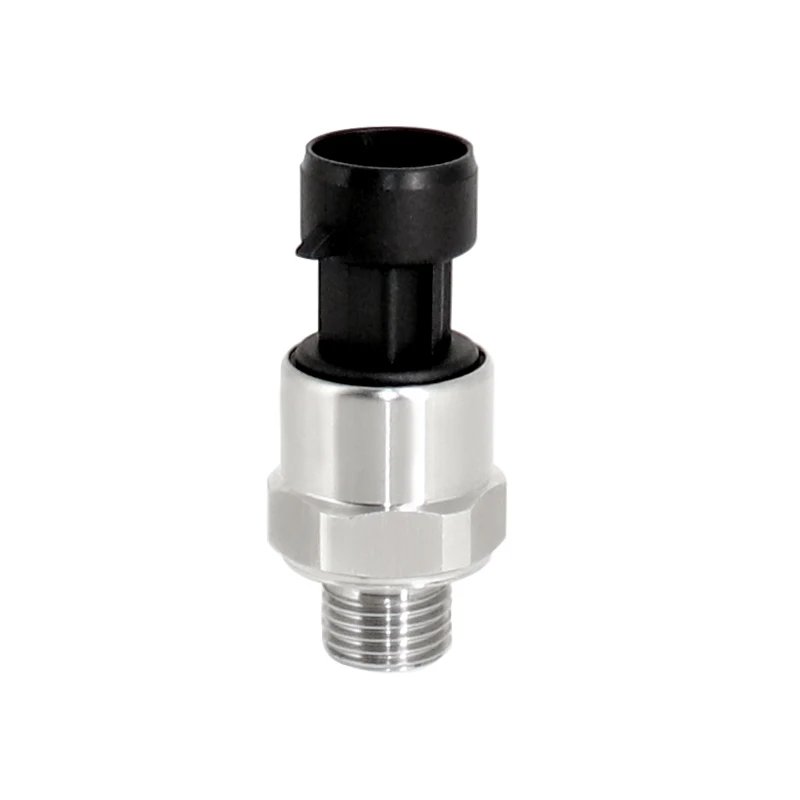

Product Show
Features
Multiple process connection options for easy installation.
1% typical accuracy, providing excellent accuracy for critical applications.
Factory calibrated, no field calibration required. Plug-and-play reliability.
Rugged, compact design saves installation space.
OEM/ODM available to accommodate special needs.

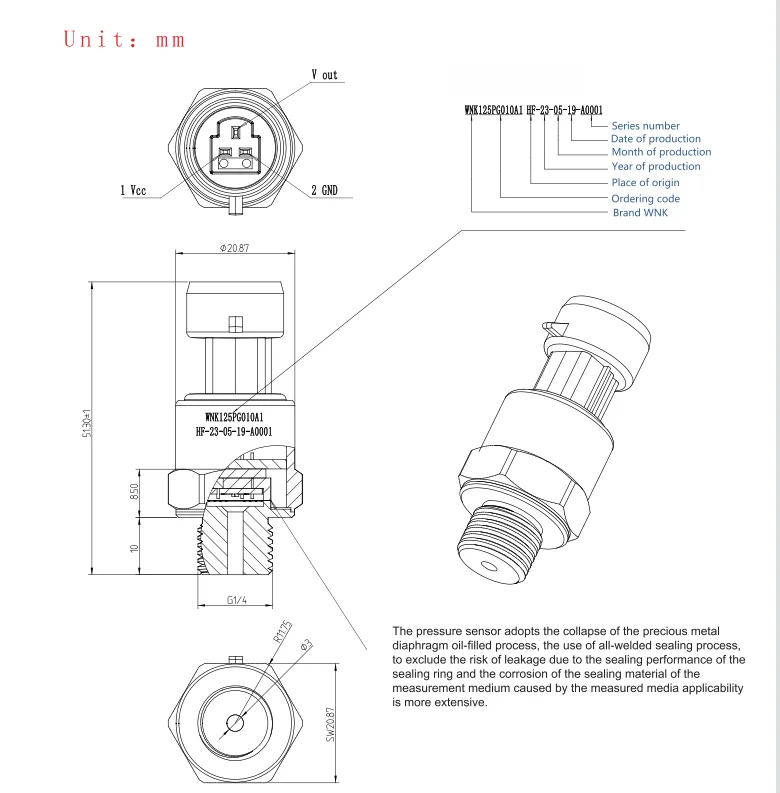

Dimensions

Company Profile
Exhibition
Certifications
FAQ
Q: Are you manufacturer or trading company?

A: We are 14-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.

Q: What’s your quality control system?

A: As anISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing,calibration, temperature compensation before shipment. High quality is guaranteed.

Q: Is there MOQ with your product?

A: We have no MOQ limits, 1pc for testing purpose is acceptable.

Q: Can we print our logo on the products? Do you provide customized products?

A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.

Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.

Q: What is lead time of your product?

A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
