WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

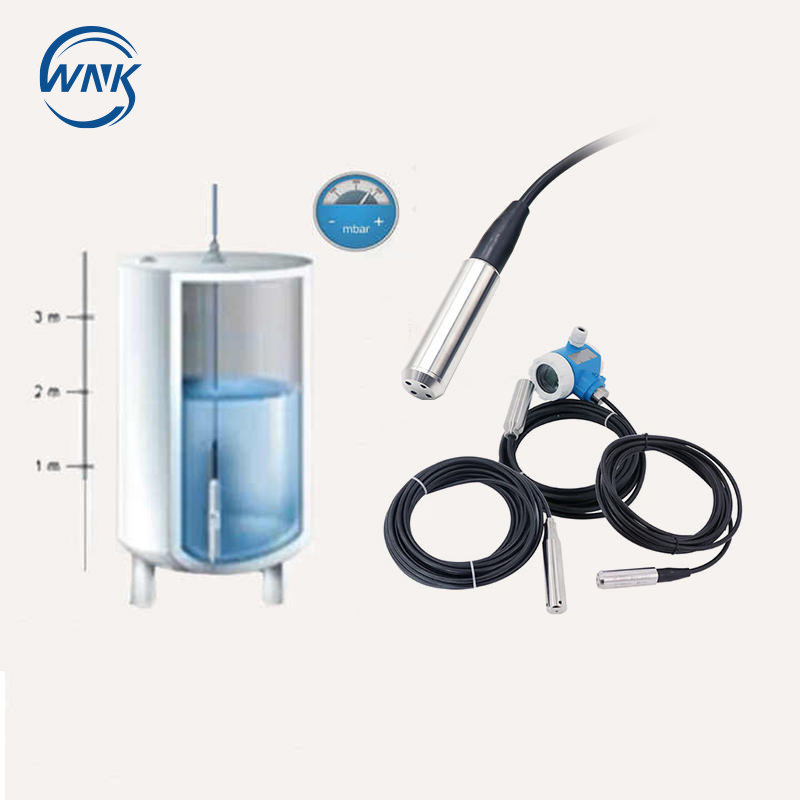

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.
WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.
Applications:
• Water tank level measurement and control. • Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on). • Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on. • Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features:
• Adopting diffusion silicon oil-filled sensor • Max measure range up to 200 meters or more • High Stability, provide 0.1, 0.2, 0.5 accuracy for option • Factory direct price
Specification
Output
4~20mA, 0-10mA, 0-5V, 1-5V, customization
Level range
0-0.5~200mH2O
Overload
150% of sensor range
Measuring medium
Liquid
Accuracy
±0.2%FS, ±0.5%FS
Stability
0.25%FS/ year
Housing material
Stainless steel
Cable material
Polyvinyl Fluoride, PTFE
Power Supply
24VDC
Ambient temperature
-20~85℃
Process temperature
-20~85℃
Compensation temperature
-20~85℃
Protection class
IP68
WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.
Applications:
• Water tank level measurement and control. • Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on). • Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on. • Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features:
• Adopting diffusion silicon oil-filled sensor • Max measure range up to 200 meters or more • High Stability, provide 0.1, 0.2, 0.5 accuracy for option • Factory direct price
WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.
