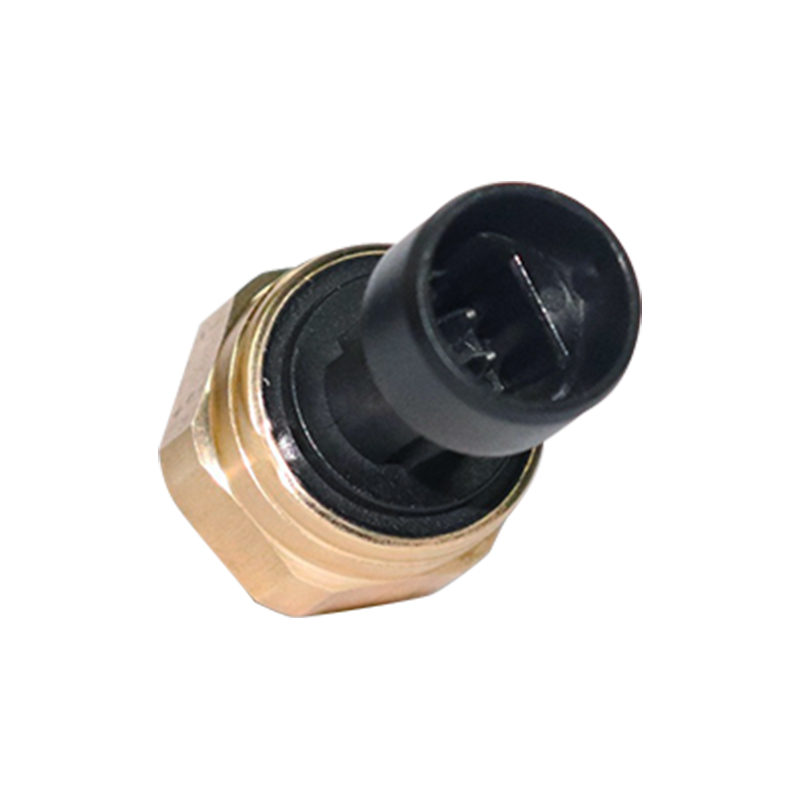

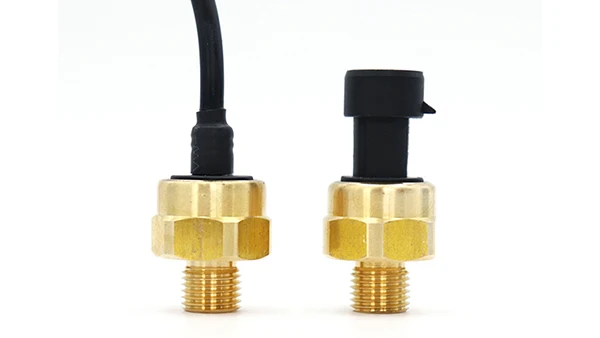

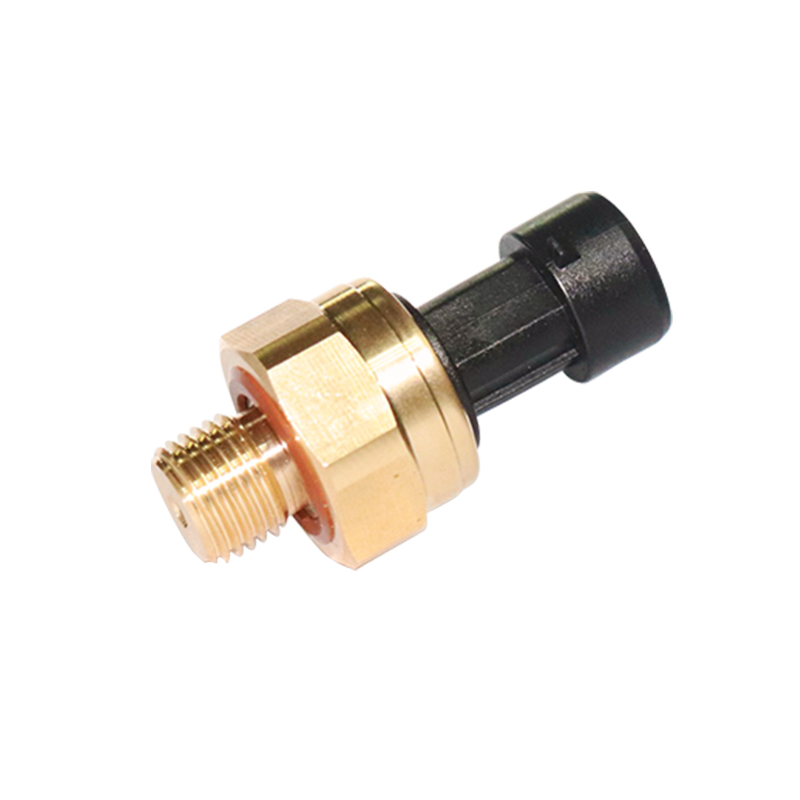

WNK83MA is our standard compact pressure Transmitter,by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
WNK83MA is our standard compact pressure Transmitter,by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Applicable media
Liquid, gas, steam
Pressure range
0-10bar, 0-20bar
Cell
Ceramic capacitive pressure sensor
Pressure measurement
Gauge pressure, sealing pressure
Output
0.5-4.5VDC
Power supply
4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability)
1%F.S.
Work temperature
-20~70ºC
Ambient temp
-40~110ºC
Temperature drift(zero)
±0.15% F.S. (-20~70ºC)
Temperature drift(full range)
±0.15% F.S. (-20~70ºC)
Electrical connection
Cable outlet/Parkard connector
Mechanical connection
G1/4(M) or NPT1/4
Housing material
Brass

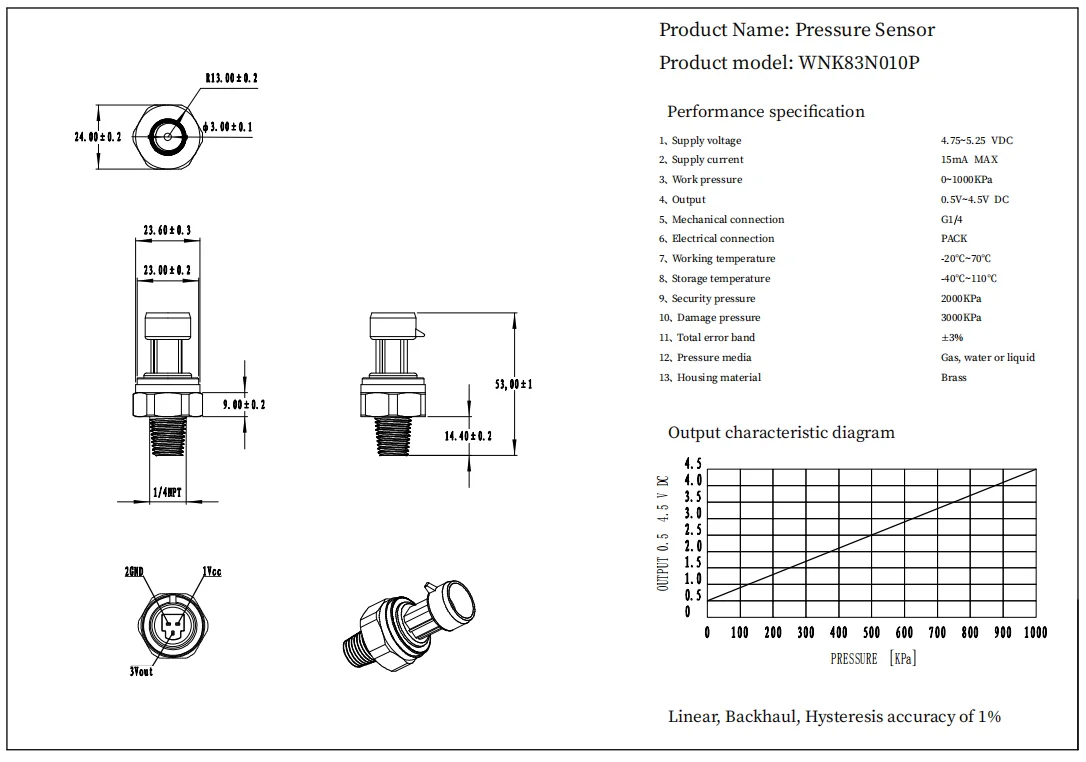

Product Dimension

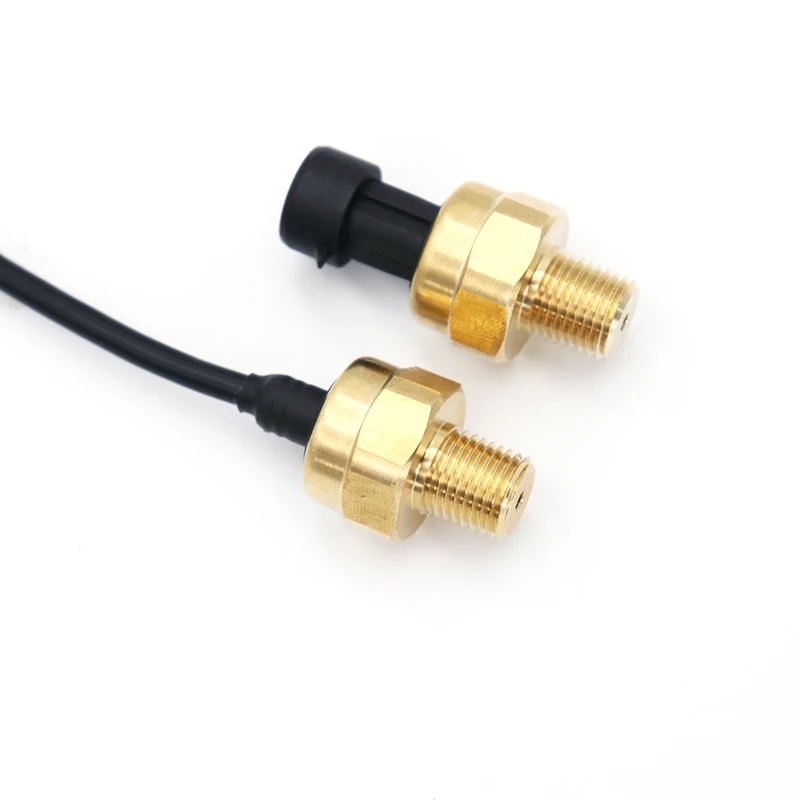

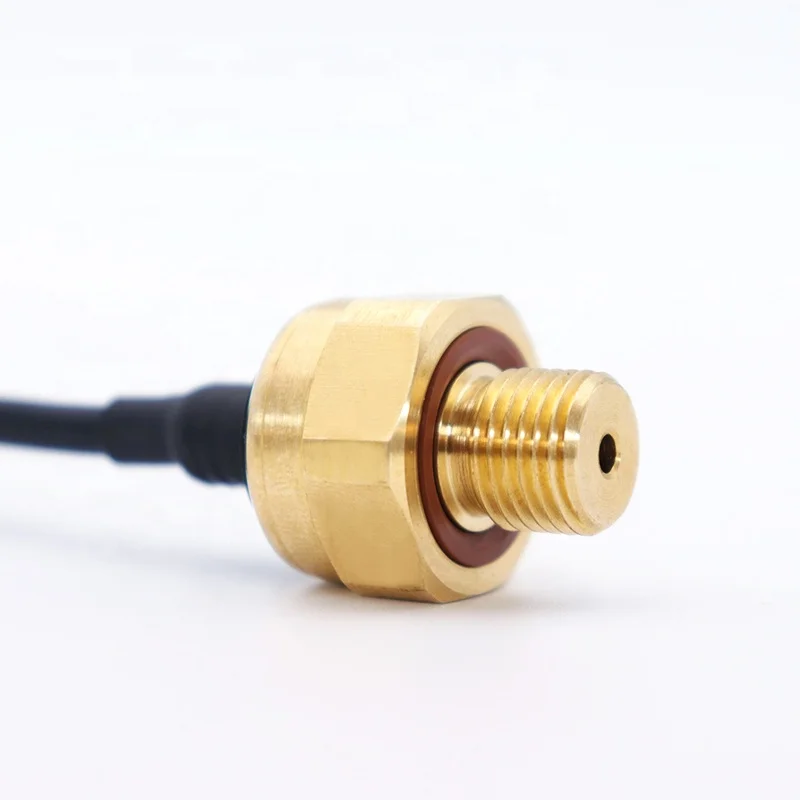

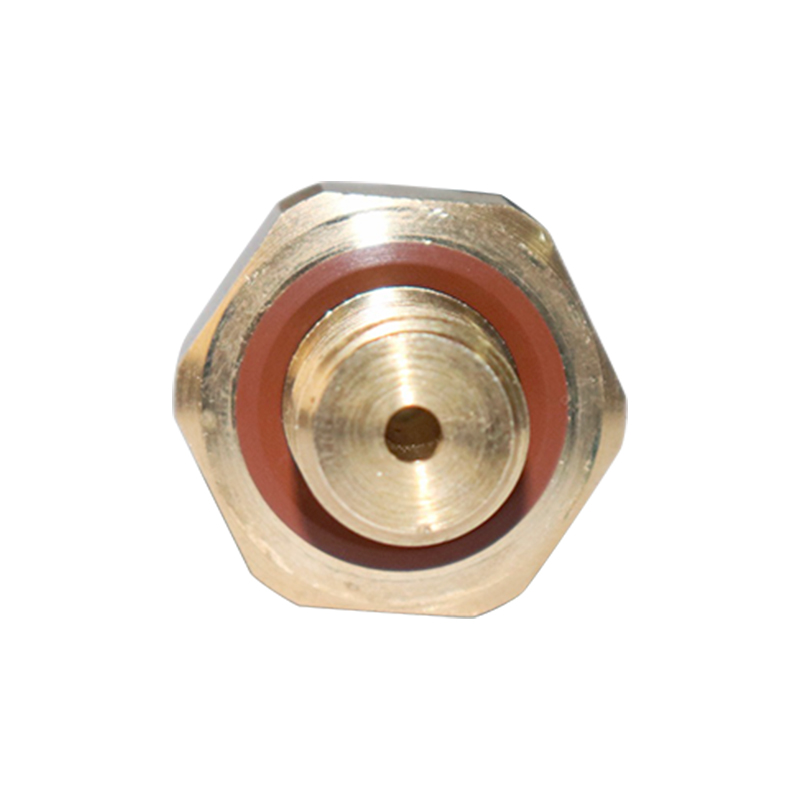

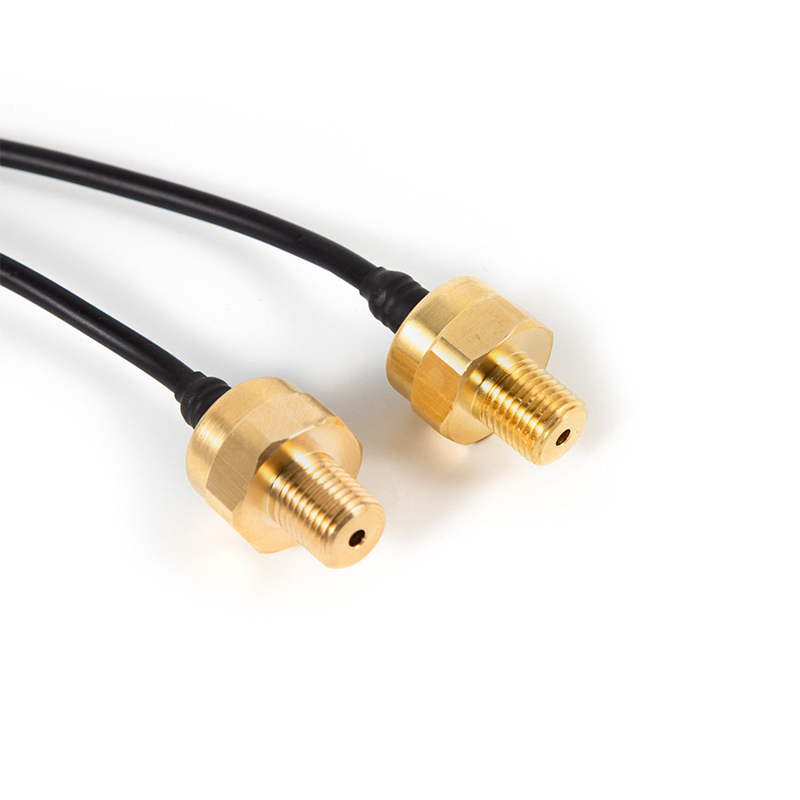

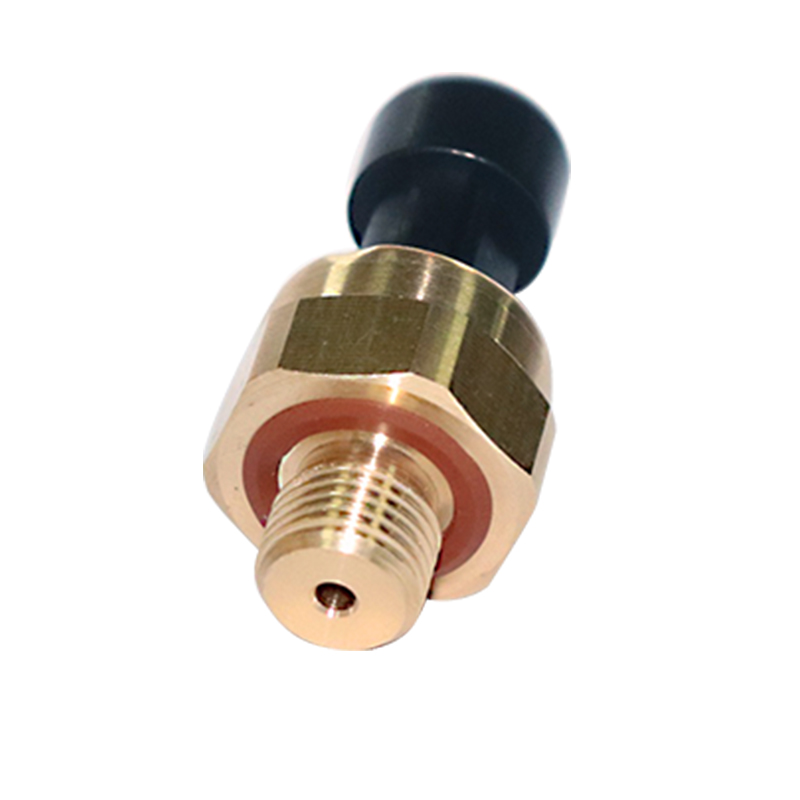

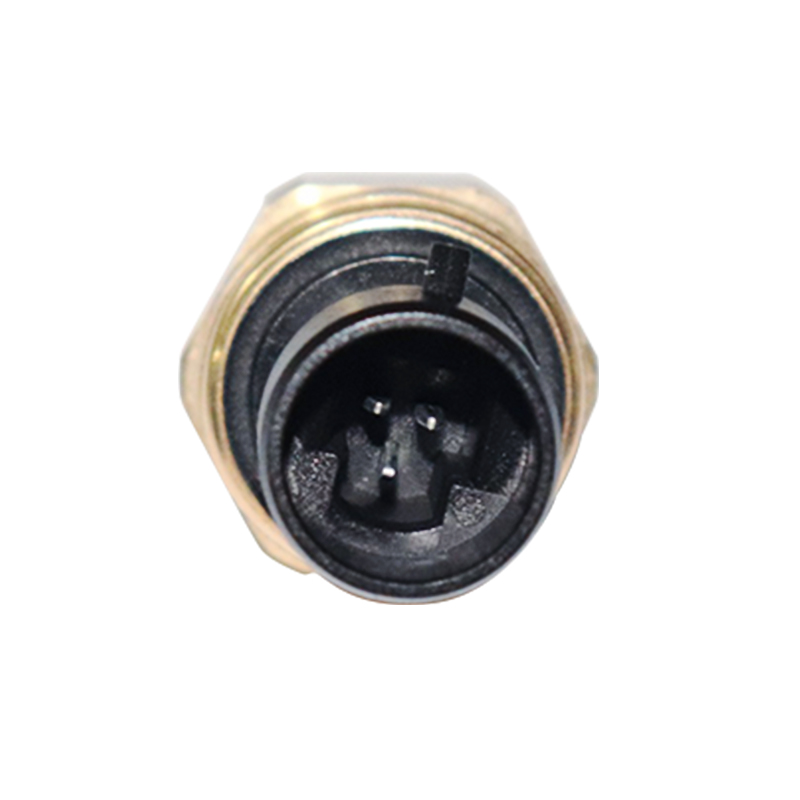

Detailed Images
Our Company
Exhibition
Certificates
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
