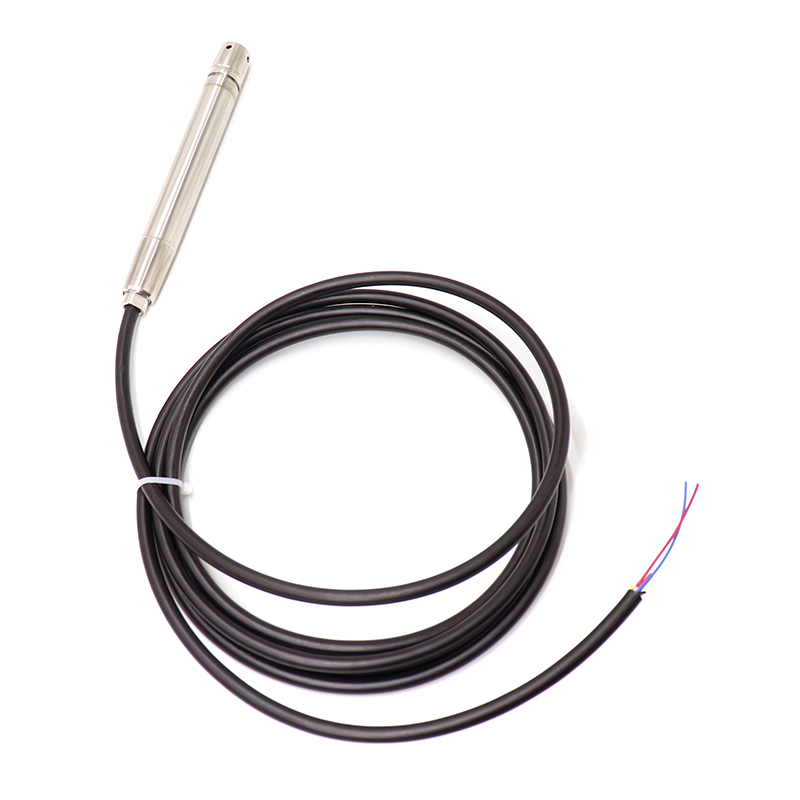

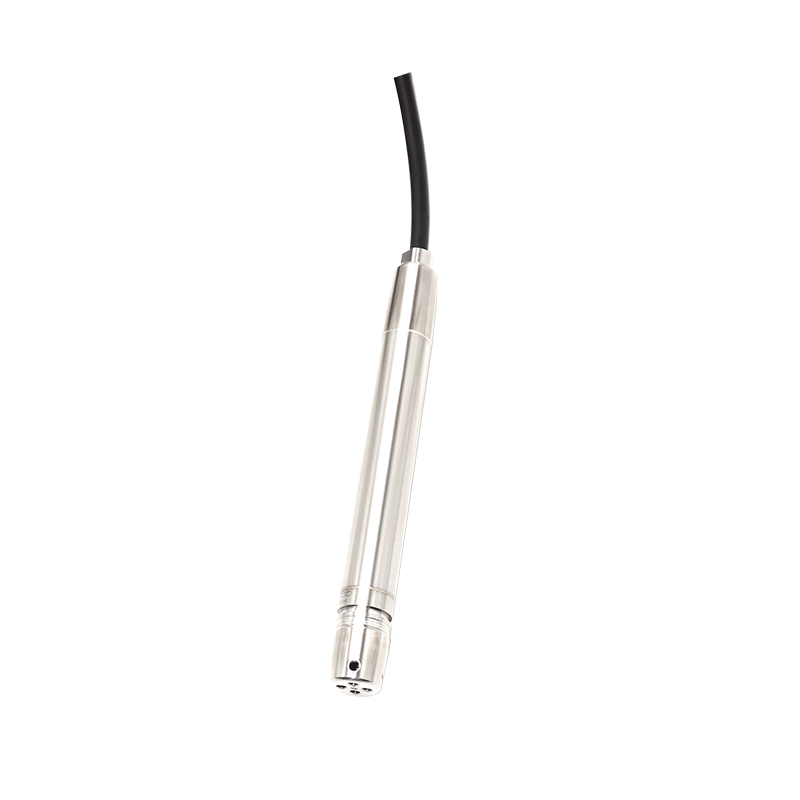

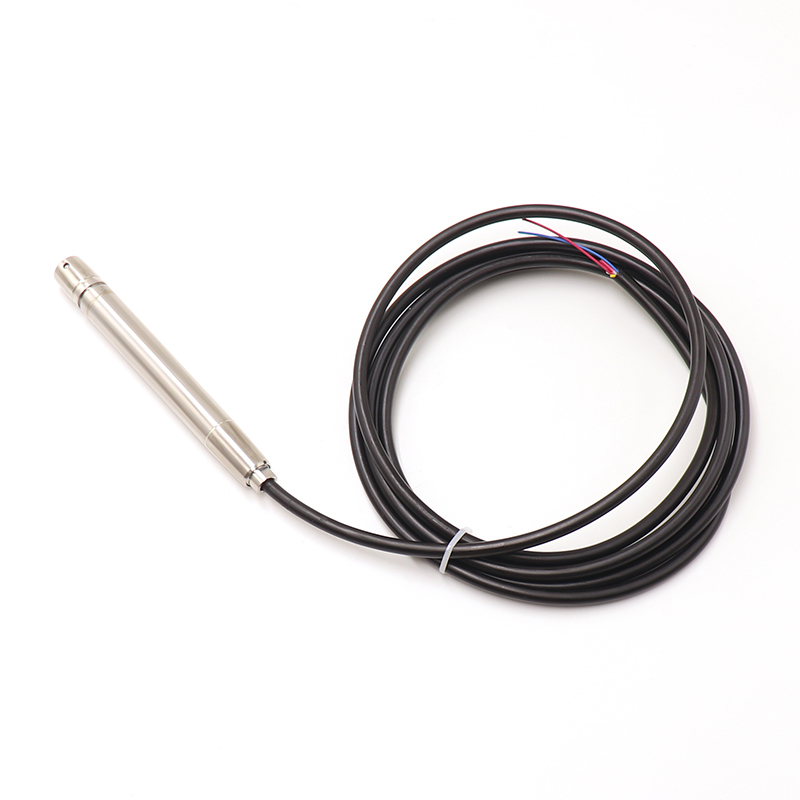

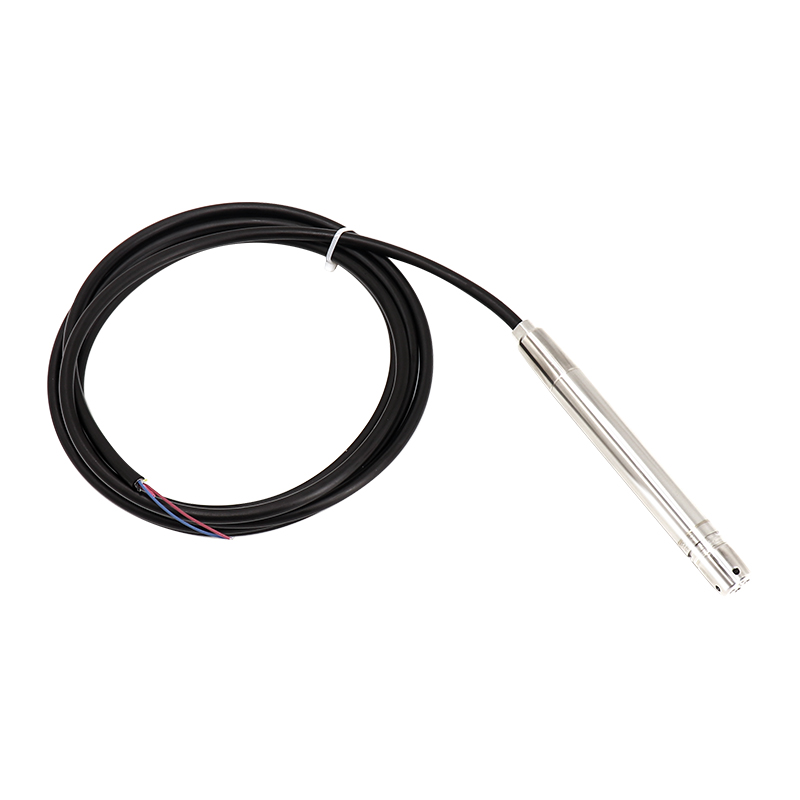

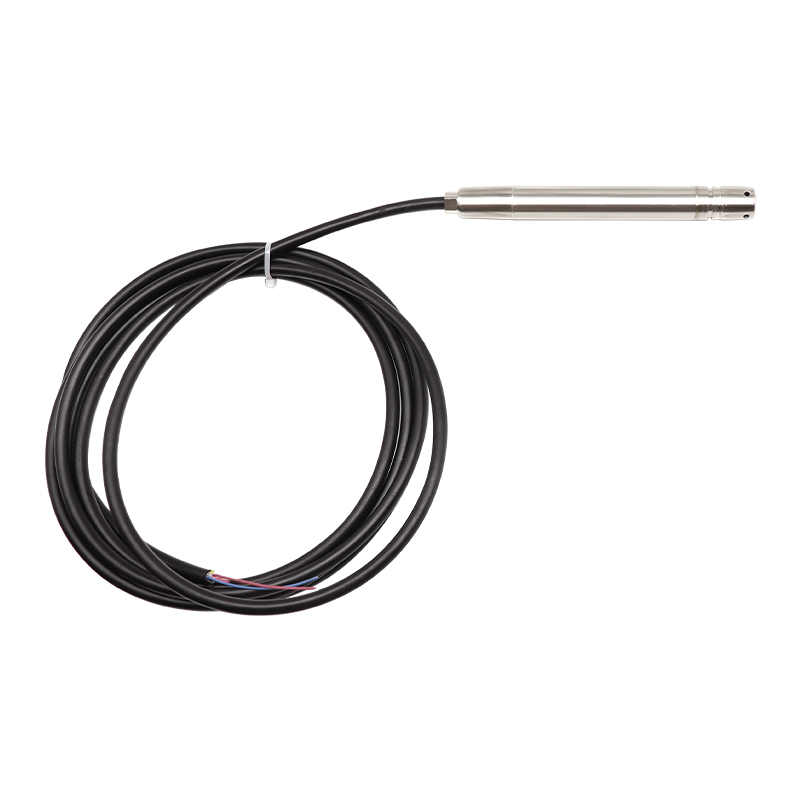

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.
WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.
no-polarity two wire current output.
♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.
♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.
Applications
• Water tank level measurement and control. • Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on). • Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on. • Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features • Adopting diffusion silicon oil-filled sensor • Max measure range up to 200 meters or more • High Stability, provide 0.1, 0.2, 0.5 accuracy for option • Factory direct price
Size/Principle
Product Description
Output
4-20mA, 0-5V, 1-5V, customization
Measured Range
0-0.5~200mH2O
Max overload
150% of sensor range
Pressure Type
Gage,Absolute
Accuracy
±0.2% FS/year
Long Term Stability
±0.25% FS/year
Housing Material
Stainless steel
Cable Material
Polyvinyl Fluoride, PTFE
Power supply
24V DC
Operating Temperature
-30~85℃
Compensation Temperature
-20~70℃
Protection Class
IP68
WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.
no-polarity two wire current output.
♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.
♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.
Applications
• Water tank level measurement and control. • Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on). • Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on. • Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features • Adopting diffusion silicon oil-filled sensor • Max measure range up to 200 meters or more • High Stability, provide 0.1, 0.2, 0.5 accuracy for option • Factory direct price

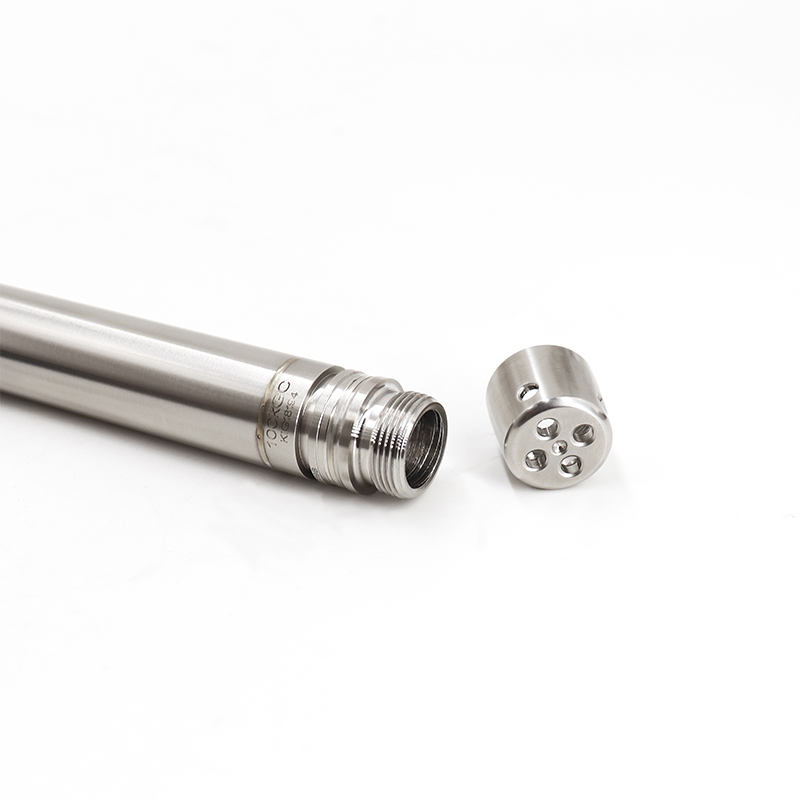

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.
