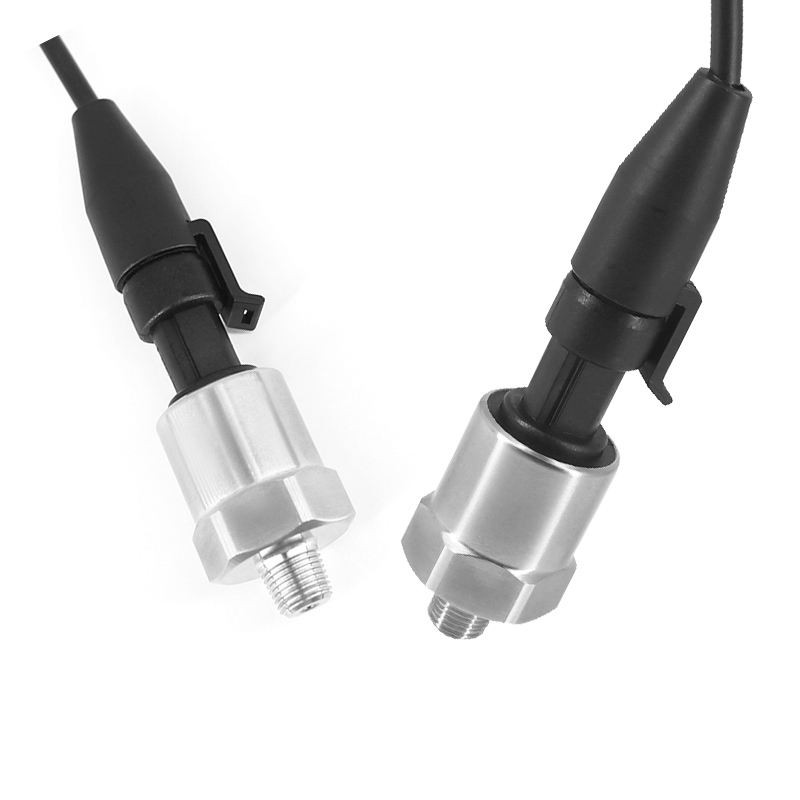

Air Pressure Transducer For Pneumatic Systems

Precise pressure management directly drives production success in modern manufacturing facilities. Industrial automation operations rely entirely on exact force application and consistent fluid control. When pneumatic systems lack this required precision, production lines immediately suffer. Unstable pneumatic pressure causes inconsistent cycle times, premature actuator wear, and severe mechanical failures. It also triggers excessive energy consumption across compressed air networks. Because compressed air remains a highly expensive utility, poor regulation directly drains facility budgets.

We must transition away from basic component definitions and build a rigorous technical evaluation framework. Selecting the correct Air Pressure Transducer requires a careful, methodical balance. Engineers must weigh signal integrity against environmental robustness and precise control logic. This guide avoids exaggerated vendor claims about perfect measurement accuracy. Instead, you will learn how to match specific sensor capabilities to realistic system tolerances. By aligning transducer specifications directly with your programmable logic controller (PLC) requirements, you ensure reliable, long-term operational success.

Key Takeaways

• Signal Selection is Critical: Current outputs (4-20 mA) resist electrical noise over long distances, while digital protocols (IO-Link) enable predictive maintenance.

• Application Dictates Form: Physical configuration (e.g., modular FRL integration, remote sensors, or integrated LED displays) directly impacts maintenance accessibility.

• Over-specification Wastes Budget: Specifying ultra-high accuracy is unnecessary if the downstream mechanical components (valves, cylinders) have high hysteresis.

• Environmental Realities: Lifespan is primarily dictated by defense against overpressure events, mechanical vibration, and media contamination.

The Core Mechanics of a Pneumatic Pressure Transducer

At a fundamental baseline, these devices convert applied mechanical air pressure into a proportional electrical signal. Decades ago, early legacy systems relied heavily on mechanical force-balance mechanisms. They utilized cumbersome springs and magnetic coils to maintain output states. However, pneumatic control technology has evolved dramatically. Modern units completely discard mechanical springs.

Instead, they utilize internal closed-loop proportional-integral-derivative (PID) control algorithms alongside highly responsive piezo valves. Piezoelectric valves use crystal structures expanding slightly when receiving an electrical current. This allows frictionless, near-instantaneous proportional control of airflow. This architectural shift guarantees rapid response times and eliminates the friction-induced hysteresis plaguing older mechanical designs.

To evaluate these devices properly, we must define the three distinct measurement references used across fluid power systems:

• Gauge Pressure: This remains the most common reference for standard factory shop air. It measures pressure relative to local ambient atmospheric pressure. For instance, a disconnected gauge reads exactly zero regardless of your factory's altitude.

• Absolute Pressure: This measurement references a perfect, true vacuum. Engineers specify absolute sensors for highly specialized vacuum bagging processes, scientific leak testing, or high-altitude pneumatic operations where fluctuating atmospheric pressure would ruin data.

• Differential Pressure: These units feature two physical ports. The sensor calculates the precise difference (delta) between the two applied pressures. Differential measurement serves as the industry standard for monitoring pneumatic filter clogging or verifying specific flow rates across an orifice.

A viable modern Pneumatic Pressure Transducer must demonstrate far more than peak laboratory accuracy. It must deliver minimal hysteresis and massive repeatability. When controlling a high-speed packaging arm, your control system needs consistent, identical signal data across millions of repetitive cycles.

Matching Electrical Outputs to Control Architectures

Evaluating signal integrity forms your next critical step. Standard electrical transmission protocols behave very differently under harsh real-world conditions. You must choose an output protocol matching your plant's specific architecture.

Voltage Outputs (0-5 VDC / 0-10 VDC):
Analog voltage signals are highly cost-effective and extremely responsive. They work exceptionally well for localized control panels. If you keep wire lengths under 50 feet and avoid heavy electromagnetic interference (EMI), voltage excels. However, voltage signals suffer severely from voltage drop over long cable runs. Resistance in the wire decreases the delivered voltage, tricking the PLC into reading artificially low pressure values.

Current Outputs (4-20 mA):
Current loops remain the undisputed industrial standard for harsh environments. Thanks to Kirchhoff's current law, the current remains constant throughout the entire loop regardless of wire resistance. Therefore, a 4-20 mA loop stays virtually immune to signal degradation over long distances—easily exceeding 1,000 feet. It firmly resists ambient EMI generated by nearby heavy machinery, variable frequency drives (VFDs), or large contactors. If the wire breaks, the signal drops to 0 mA, immediately alerting the system to a fault.

Modern Digital Interfaces (IO-Link):
The Industry 4.0 revolution heavily favors IO-Link architecture. Digital protocols enable true two-way communication between the sensor and the controller. You can perform remote parameterization effortlessly. When replacing a damaged sensor, the PLC automatically downloads the previous configuration parameters into the new device. IO-Link also allows dynamic threshold adjustments mid-cycle, streamlining multi-product manufacturing lines.

Best Practice: Whenever you must run analog voltage signal wires, route them perpendicularly across high-voltage AC lines rather than parallel. This technique significantly reduces inductive coupling and preserves signal integrity.

Form Factors and Physical Integration Strategies

Physical design heavily dictates your overall system topology. Form factor selection directly influences installation ease, machine footprint, and maintenance accessibility. You must categorize your physical options carefully.

Integrated Display Sensors:
These units feature local programming keypads alongside high-visibility LED screens. Manufacturers often design them using dual-color (red/green) displays. The screen shines green when pressure remains within tolerance, and flips red during an overpressure fault. They fit perfectly at manual workstations. Operators can verify operating pressure at a glance without walking to a central human-machine interface (HMI).

Remote/Blind Transducers:
You mount these compact, rugged enclosures deep within complex machinery. They intentionally lack local screens or buttons. Instead, they transmit analog signals directly back to the main HMI. By stripping away delicate display components, blind sensors resist physical impacts and severe vibration exceptionally well. They represent the optimal choice for cramped spaces inside automated robotics cells.

Modular FRL Integrations:
Many modern transducers mate directly into modular Filter-Regulator-Lubricator (FRL) assemblies using custom mounting blocks. This integration strategy minimizes external piping. By eliminating threaded NPT fittings and external hoses, you drastically reduce potential leak points across your compressed air network.

Your specific downstream target heavily influences the required form factor. Consider these common implementations:

1. Pneumatic cylinders: Often require remote blind sensors tucked near the cylinder port to measure true actuation pressure accurately.

2. Web tensioners: Typically utilize integrated display sensors so line operators can manually verify roller tension during paper or film manufacturing.

3. High-speed clutches: Demand modular FRL-integrated sensors positioned as close to the pneumatic clutch mechanism as possible to ensure rapid response times.

Specification and Evaluation Framework

Evaluating raw performance metrics requires a highly pragmatic mindset. Typical industrial accuracy sits around ±0.2% to ±0.5% of full scale. You should rigorously avoid over-specifying accuracy unless your application specifically demands laboratory-grade precision. Specifying a ±0.05% sensor to drive a standard pneumatic gate valve wastes budget. Mechanical valves naturally exhibit 2% to 5% hysteresis, rendering ultra-precise electronic signals moot.

Sizing the measurement range correctly represents your most important specification task. The sensor’s maximum range must closely parallel the application's actual operating pressure. Using a massively oversized sensor severely degrades your control resolution.

Consider this practical calculation scenario. If your PLC utilizes a 12-bit analog input module, it divides the incoming signal into exactly 4,096 distinct steps. If you install a 10,000 PSI transducer, each step equals roughly 2.44 PSI. If your pneumatic system only operates at 100 PSI, you utilize only 40 steps of your PLC's available resolution. The controller will struggle to maintain stable pressure. Always specify a sensor range sitting slightly above your maximum operating pressure, such as a 150 PSI sensor for a 100 PSI system.

The Low Pressure Transducer Challenge

Measuring extremely delicate pneumatic pressures demands unique engineering considerations. Applications like vacuum wafer holding, delicate robotic gripping, or medical leak testing require a dedicated Low Pressure Transducer. Because mechanical deformation is minimal at low pressures (e.g., 0 to 5 PSI), these devices utilize highly sensitive piezoresistive silicon chips. While incredibly accurate, this extreme sensitivity makes them highly vulnerable. A minor burst of compressed air can instantly shatter the internal silicon die. You must design strict mechanical pressure-relief circuits upstream of low-pressure devices.

Environmental Ratings

Industrial environments actively punish delicate electronics. You must verify ingress protection ratings thoroughly. Ensure the chosen sensor housing utilizes anodized aluminum or 316 stainless steel.

• IP65 / NEMA 4: Protects against dust ingress and low-pressure water jets. Suitable for standard indoor factory automation.

• IP67 / NEMA 6: Withstands temporary submersion in liquids. Required for washdown environments in food processing.

• IP69K: Resists high-pressure, high-temperature steam cleaning. Strictly necessary for hygienic beverage or pharmaceutical lines.

Implementation Risks and Predictive Maintenance

Even top-tier, highly specified sensors fail rapidly if engineers install them incorrectly. You must proactively identify and mitigate the primary killers of a Pressure Transducer.

Overpressure Spikes and Water Hammer:
Sudden dynamic pressure spikes can permanently deform the internal sensing diaphragm. This deformation shifts the zero-point, causing persistent measurement errors. In severe cases, high-velocity air pushes pooled condensation into the sensor, creating a hydraulic shock known as water hammer. You should evaluate incorporating porous metal snubbers. Snubbers act as micro-restrictors, smoothing out violent pressure spikes before they physically strike the delicate diaphragm.

Vibration and Mechanical Shock:
Heavy stamping presses and high-speed sorters induce constant mechanical shaking. Over months of operation, this movement can easily degrade internal microscopic wire bonds and fracture solder joints. To combat this, you must mandate proper strain-relief loops on all sensor cabling. Never pull cables taut against the sensor body. Additionally, consider remote-mounting the sensor away from the primary shock zone, linking it via a short length of flexible pneumatic tubing.

Media Contamination:
Standard pneumatic units measure clean, dry air exclusively. However, compressor oil bypass, pipe scale, and airborne moisture frequently invade factory air lines. This sludge can quickly coat and foul dry-media sensors. If your facility struggles with air quality, specify wet/dry capability. These upgraded units feature ruggedized, isolated stainless-steel diaphragms safely separating the sensing electronics from dirty air streams.

Business Impact via Predictive Maintenance:
Deploying smart IO-Link transducers offers massive operational advantages. By constantly tracking minute pressure drops across the network, you identify failing cylinder seals, leaking distribution lines, or clogged FRL filters early. You catch these anomalies weeks before catastrophic machine downtime actually occurs. This proactive maintenance strategy directly reduces electrical energy waste and heavily optimizes plant productivity.

Conclusion

Selecting the optimal sensor for your pneumatic network follows a highly logical evaluation funnel. First, you determine the target pressure range and verify your specific media type (clean air vs. contaminated lines). Next, select the required output signal protocol based entirely on transmission distance and EMI risks present on your factory floor. Then, choose the ideal physical form factor based on how frequently operators need local interaction. Finally, strictly confirm the necessary environmental protection ratings to ensure long-term survivability.

We strongly encourage engineers to audit their current pneumatic schematics thoroughly. Walk the factory floor and measure your actual cable run lengths. Document the exact hysteresis values of your downstream mechanical valves. By consulting directly with application specialists and reviewing these specific field metrics, you ensure your next sensor procurement performs flawlessly.

FAQ

Q: What is the typical lifespan of an industrial air pressure transducer?

A: Lifespan is highly application-dependent, typically ranging from several years to over a decade. It is dictated entirely by environmental factors, cycle fatigue, and defense against overvoltage or overpressure events rather than time alone. Protecting the device from vibration extends usability significantly.

Q: Can a standard pneumatic pressure transducer measure wet media like liquids?

A: Not always. Standard pneumatic variants are strictly rated for dry gases. If moisture, compressor oils, or process liquids are present, you must specify a unit explicitly rated for wet media. These specialized units feature fully isolated stainless-steel diaphragms protecting internal electronics.

Q: Why is a 4-20 mA output preferred over 0-10V in heavy industrial pneumatic systems?

A: Current loops (4-20 mA) are inherently immune to the voltage drops caused by long wire runs. Furthermore, they firmly resist electromagnetic interference (EMI) generated by heavy machinery and variable frequency drives, ensuring clean signals reach the PLC.

Q: How does a differential pressure transducer differ from a standard gauge transducer?

A: A gauge transducer measures pressure relative to atmospheric pressure using a single port. A differential transducer features two physical ports. It measures the exact difference in pressure between those two points, making it perfect for monitoring pressure drops across pneumatic filters.
